Sundance::Nedelec Class Reference

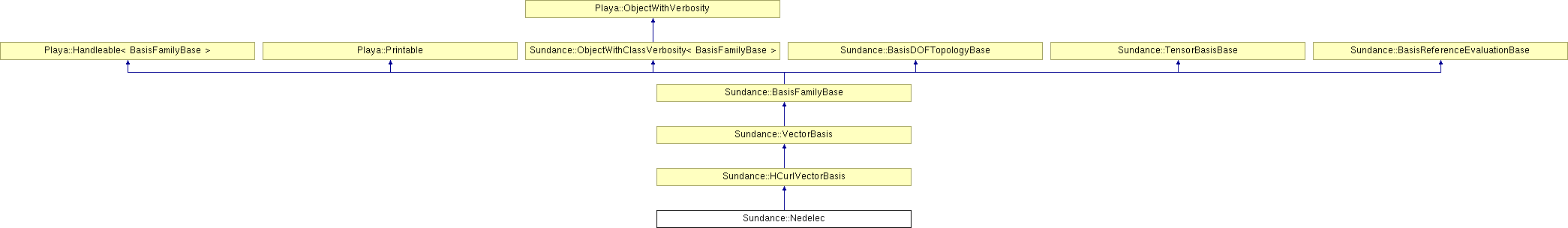

Inheritance diagram for Sundance::Nedelec:

List of all members.

Public Member Functions
	Nedelec (int spatialDim)
bool	supportsCellTypePair (const CellType &maximalCellType, const CellType &cellType) const
	Inform caller as to whether a given cell type is supported.
void	print (std::ostream &os) const
int	order () const
int	nReferenceDOFsWithoutFacets (const CellType &maximalCellType, const CellType &cellType) const
void	getReferenceDOFs (const CellType &maximalCellType, const CellType &cellType, Array< Array< Array< int > > > &dofs) const
void	refEval (const CellType &cellType, const Array< Point > &pts, const SpatialDerivSpecifier &deriv, Array< Array< Array< double > > > &result, int verbosity=0) const
Private Member Functions
Handleable interface
void	evalOnTriangle (int dir, const Point &pt, const SpatialDerivSpecifier &deriv, Array< double > &result) const

---

Detailed Description

Lowest-order Nedelec basis

Definition at line 43 of file SundanceNedelec.hpp.

---

Constructor & Destructor Documentation

Nedelec::Nedelec

(

int

spatialDim

)

Definition at line 45 of file SundanceNedelec.cpp.

---

Member Function Documentation

void Sundance::Nedelec::evalOnTriangle	(	int	dir,
		const Point &	pt,
		const SpatialDerivSpecifier &	deriv,
		Array< double > &	result
	)			const [private]

evaluate on a triangle cell

void Nedelec::getReferenceDOFs	(	const CellType &	maximalCellType,
		const CellType &	cellType,
		Array< Array< Array< int > > > &	dofs
	)			const [virtual]

Implements Sundance::BasisDOFTopologyBase.

Definition at line 110 of file SundanceNedelec.cpp.

References Sundance::LineCell, Sundance::PointCell, Sundance::TetCell, and Sundance::TriangleCell.

int Nedelec::nReferenceDOFsWithoutFacets	(	const CellType &	maximalCellType,
		const CellType &	cellType
	)			const [virtual]

return the number of nodes for this basis on the given cell type

Implements Sundance::BasisDOFTopologyBase.

Definition at line 89 of file SundanceNedelec.cpp.

References Sundance::LineCell, Sundance::PointCell, and Sundance::TriangleCell.

int Sundance::Nedelec::order

(

)

const [inline, virtual]

Implements Sundance::BasisFamilyBase.

Definition at line 61 of file SundanceNedelec.hpp.

void Nedelec::print

(

std::ostream &

os

)

const [virtual]

Implements Playa::Printable.

Definition at line 84 of file SundanceNedelec.cpp.

void Nedelec::refEval	(	const CellType &	cellType,
		const Array< Point > &	pts,
		const SpatialDerivSpecifier &	deriv,
		Array< Array< Array< double > > > &	result,
		int	verbosity = 0
	)			const [virtual]

Implements Sundance::BasisReferenceEvaluationBase.

Definition at line 147 of file SundanceNedelec.cpp.

bool Nedelec::supportsCellTypePair	(	const CellType &	maximalCellType,
		const CellType &	cellType
	)			const [virtual]

Inform caller as to whether a given cell type is supported.

Implements Sundance::BasisDOFTopologyBase.

Definition at line 49 of file SundanceNedelec.cpp.

References Sundance::LineCell, Sundance::PointCell, Sundance::TetCell, and Sundance::TriangleCell.
