Sundance::BasisReferenceEvaluationBase Class Reference

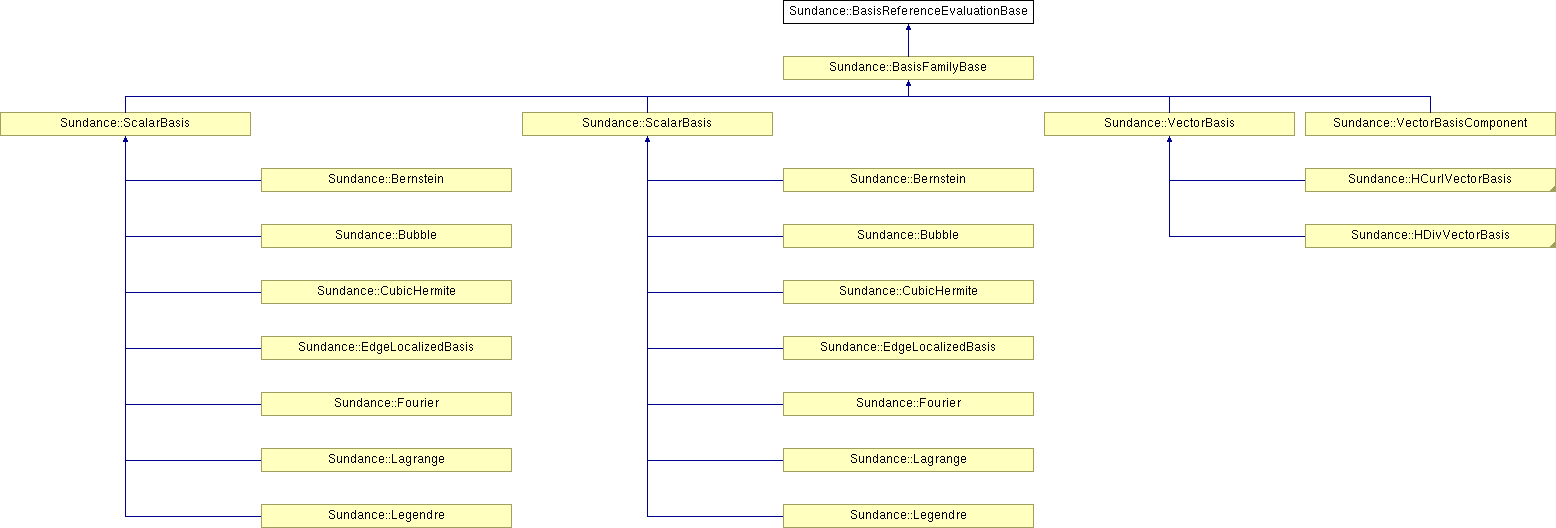

Inheritance diagram for Sundance::BasisReferenceEvaluationBase:

List of all members.

Public Member Functions
virtual void	refEval (const CellType &cellType, const Array< Point > &pts, const SpatialDerivSpecifier &deriv, Array< Array< Array< double > > > &result, int verbosity=0) const =0
	Evaluate the basis functions (or some mixed spatial derivative of the basis functions) for an array of points on the "reference cell" for a given cell type.
virtual void	getConstrainsForHNDoF (const int indexInParent, const int maxCellDim, const int maxNrChild, const int facetDim, const int facetIndex, const int nodeIndex, Array< int > &localDoFs, Array< int > &parentFacetDim, Array< int > &parentFacetIndex, Array< int > &parentFacetNode, Array< double > &coefs)

---

Detailed Description

Abstract interface for evaluation of basis functions and their spatial derivatives on reference cells.

Definition at line 54 of file SundanceBasisReferenceEvaluationBase.hpp.

---

Member Function Documentation

virtual void Sundance::BasisReferenceEvaluationBase::getConstrainsForHNDoF	(	const int	indexInParent,
		const int	maxCellDim,
		const int	maxNrChild,
		const int	facetDim,
		const int	facetIndex,
		const int	nodeIndex,
		Array< int > &	localDoFs,
		Array< int > &	parentFacetDim,
		Array< int > &	parentFacetIndex,
		Array< int > &	parentFacetNode,
		Array< double > &	coefs
	)			[inline, virtual]

Computes the constraints for DoFs which are on hanging elements.
The child cell is which constrains the hanging local DoF, and the parent cell is needed to find the global DoFs.

Parameters:

	indexInParent	[in] each (child)cell which has one hanging node, has a parent cell which has one facet, where there are global DoFs
	maxCellDim	[in] the dimension of the maximal cell
	maxNrChild	[in] how many children has one parent cell, this tells us if we have trisection or bisection
	facetDim	[in] the hanging element dimension which is a facet of the child cell
	facetIndex	[in] the hanging element facet index in the child cell
	nodeIndex	[in] one element (e.g edge) might have more than one DoF, specify which DoF on the elemnt do we want to constrain
	localDoFs	[out] the local DoFs in the parent cell which contribute to the hanging DoF
	parentFacetDim	[out] the facet dimension where the local DoFs (localDoFs) are
	parentFacetIndex[out]	the facet index where the local DoFs (localDoFs) are
	parentFacetNode[out]	the facet node where the local DoFs (localDoFs) is (e.g.: one edge might have 2 DoFs in P3)
	coefs	[out] the belonging coefficients to the parents local DoF

Reimplemented in Sundance::Lagrange.

Definition at line 124 of file SundanceBasisReferenceEvaluationBase.hpp.

virtual void Sundance::BasisReferenceEvaluationBase::refEval	(	const CellType &	cellType,
		const Array< Point > &	pts,
		const SpatialDerivSpecifier &	deriv,
		Array< Array< Array< double > > > &	result,
		int	verbosity = 0
	)			const [pure virtual]

Evaluate the basis functions (or some mixed spatial derivative of the basis functions) for an array of points on the "reference cell" for a given cell type.

Parameters:

	cellType	[in] The type of cell on which the basis is currently being evaluated.
	pts	[in] Array of points on the reference cell (or master cell) where the basis functions are to be computed.
	deriv	[in] Specification of which differential operator is to be applied to the basis functions.
	result	[out] On output, gives a triply nested array which contain the basis functions (or the requested basis function derivatives) evaluated at the given points pts. The size of the outer array results is either zero or spatialDim, depending on whether this is a scalar or vector basis, respectively. The size of the next array level is equal to the number of evaluation points. Finally, the size of the innermost array level is equal to the number of DOFs visible from the given cell type. x * Specifically, results[k][pointIndex][basisIndex] gives the value of the spatial derivative of the -th component of , where = deriv[0], = deriv[1] (in 2D or 3D) and = deriv[2] (in 3D) at the point pointIndex (where 0 <= pointIndex < pts.size()) for the basis function = basisIndex (where 0 <= basisIndex < mapStructure.numBasisChunks()).

Implemented in Sundance::Bernstein, Sundance::Bubble, Sundance::CubicHermite, Sundance::EdgeLocalizedBasis, Sundance::Fourier, Sundance::Lagrange, Sundance::Legendre, Sundance::Nedelec, and Sundance::RaviartThomas.
