Sundance::NLOp Class Reference

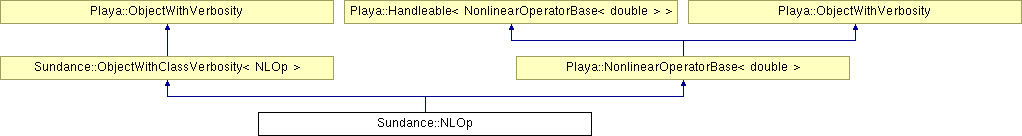

Inheritance diagram for Sundance::NLOp:

Sundance::ObjectWithClassVerbosity< NLOp > Playa::NonlinearOperatorBase< double > Playa::ObjectWithVerbosity Playa::Handleable< NonlinearOperatorBase< double > > Playa::ObjectWithVerbosity

List of all members.

Public Member Functions

 NLOp ()
 NLOp (const Mesh &mesh, const Expr &eqn, const Expr &bc, const Expr &test, const Expr &unk, const Expr &u0, const Playa::VectorType< double > &vecType, bool partitionBCs=false)
 NLOp (const Mesh &mesh, const Expr &eqn, const Expr &bc, const BlockArray &test, const BlockArray &unk, const Expr &u0)
 NLOp (const Mesh &mesh, const Expr &eqn, const Expr &bc, const Expr &test, const Expr &unk, const Expr &u0, const Expr &params, const Expr &paramVals, const Playa::VectorType< double > &vecType, bool partitionBCs=false)
 NLOp (const RCP< Assembler > &assembler, const Expr &u0)
LinearOperator< double > computeJacobianAndFunction (Vector< double > &functionValue) const
void computeJacobianAndFunction (LinearOperator< double > &J, Vector< double > &resid) const
Expr computeSensitivities (const LinearSolver< double > &solver) const
Expr getU0 () const
Playa::Vector< double > computeFunctionValue () const
void computeFunctionValue (Vector< double > &resid) const
Playa::Vector< double > getInitialGuess () const
LinearOperator< double > allocateJacobian () const
void setInitialGuess (const Expr &u0New)
void reAssembleProblem () const

Handleable interface



RCP< Assemblerassembler_
Playa::LinearOperator< double > J_
Expr u0_
Expr params_
Expr paramVals_
void updateDiscreteFunctionValue (const Vector< double > &vec) const


Detailed Description

NLOp encapsulates a discrete nonlinear problem, and can be passed to a nonlinear solver such as NOX.

Definition at line 56 of file SundanceNLOp.hpp.


Constructor & Destructor Documentation

NLOp::NLOp (  )

Empty ctor

Definition at line 66 of file SundanceNLOp.cpp.

References nlpCtorTimer().

NLOp::NLOp ( const Mesh mesh,
const Expr eqn,
const Expr bc,
const Expr test,
const Expr unk,
const Expr u0,
const Playa::VectorType< double > &  vecType,
bool  partitionBCs = false
)

NLOp::NLOp ( const Mesh mesh,
const Expr eqn,
const Expr bc,
const BlockArray test,
const BlockArray unk,
const Expr u0
)

NLOp::NLOp ( const Mesh mesh,
const Expr eqn,
const Expr bc,
const Expr test,
const Expr unk,
const Expr u0,
const Expr params,
const Expr paramVals,
const Playa::VectorType< double > &  vecType,
bool  partitionBCs = false
)

Construct with a mesh, equation set, bcs, test and unknown funcs, parameters, and a vector type

Definition at line 173 of file SundanceNLOp.cpp.

References assembler_, Playa::NonlinearOperatorBase< double >::domain(), Sundance::Expr::flattenSpectral(), nlpCtorTimer(), Playa::NonlinearOperatorBase< double >::range(), and Playa::NonlinearOperatorBase< double >::setDomainAndRange().

NLOp::NLOp ( const RCP< Assembler > &  assembler,
const Expr u0
)


Member Function Documentation

LinearOperator< double > NLOp::allocateJacobian (  )  const

Create the Jacobian object, but don't fill it in.

Definition at line 248 of file SundanceNLOp.cpp.

References assembler_.

void NLOp::computeFunctionValue ( Vector< double > &  resid  )  const

Vector< double > NLOp::computeFunctionValue (  )  const [virtual]

void NLOp::computeJacobianAndFunction ( LinearOperator< double > &  J,
Vector< double > &  resid
) const

LinearOperator< double > NLOp::computeJacobianAndFunction ( Vector< double > &  functionValue  )  const [virtual]

Compute the residual and Jacobian at the current evaluation point

Implements Playa::NonlinearOperatorBase< double >.

Definition at line 255 of file SundanceNLOp.cpp.

References Playa::Vector< Scalar >::acceptCopyOf(), assembler_, Playa::NonlinearOperatorBase< double >::currentEvalPt(), J_, and updateDiscreteFunctionValue().

Expr NLOp::computeSensitivities ( const LinearSolver< double > &  solver  )  const

Vector< double > NLOp::getInitialGuess (  )  const [virtual]

Get an initial guess

Implements Playa::NonlinearOperatorBase< double >.

Definition at line 235 of file SundanceNLOp.cpp.

References Sundance::getDiscreteFunctionVector(), and u0_.

Expr Sundance::NLOp::getU0 (  )  const [inline]

Return the current evaluation point as a Sundance expression

Definition at line 102 of file SundanceNLOp.hpp.

References u0_.

void NLOp::reAssembleProblem (  )  const

This function forces the assembler to reassemble the matrix

Definition at line 383 of file SundanceNLOp.cpp.

References assembler_.

void NLOp::setInitialGuess ( const Expr u0New  )

void NLOp::updateDiscreteFunctionValue ( const Vector< double > &  vec  )  const [protected]


Member Data Documentation

Playa::LinearOperator<double> Sundance::NLOp::J_ [mutable, private]

Definition at line 134 of file SundanceNLOp.hpp.

Referenced by computeJacobianAndFunction(), and computeSensitivities().

Definition at line 140 of file SundanceNLOp.hpp.

Referenced by computeSensitivities().

Definition at line 143 of file SundanceNLOp.hpp.
