Sundance::GaussLobattoQuadrature Class Reference

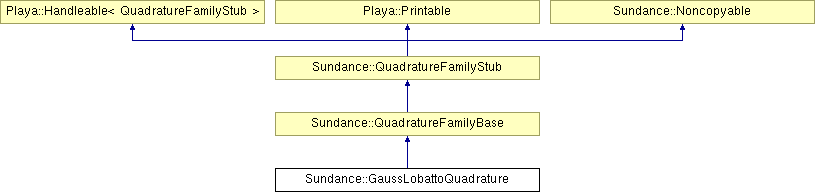

Inheritance diagram for Sundance::GaussLobattoQuadrature:

List of all members.

Public Member Functions
	GaussLobattoQuadrature (int order)
virtual	~GaussLobattoQuadrature ()
virtual XMLObject	toXML () const
virtual std::string	description () const
Handleable interface
int	nrPointin1D_
int	verb_
static const int	quadsEdgesPoints [4][2] = { {0,1} , {0,2} , {1,3} , {2,3} }
static const int	edge3DProjection [12] = { 0 , 1 , 2 , 1 , 2 , 0 , 2 , 2 , 0 , 1 , 1 , 0}
virtual void	getLineRule (Array< Point > &quadPointsL, Array< double > &quadWeights) const
virtual void	getTriangleRule (Array< Point > &quadPoints, Array< double > &quadWeights) const
virtual void	getQuadRule (Array< Point > &quadPoints, Array< double > &quadWeights) const
virtual void	getTetRule (Array< Point > &quadPoints, Array< double > &quadWeights) const
virtual void	getBrickRule (Array< Point > &quadPoints, Array< double > &quadWeights) const
virtual void	getAdaptedWeights (const CellType &cellType, int cellDim, int cellLID, int facetIndex, const Mesh &mesh, const ParametrizedCurve &globalCurve, Array< Point > &quadPoints, Array< double > &quadWeights, bool &weightsChanged) const
virtual void	getAdaptedQuadWeights (int cellLID, const Mesh &mesh, const ParametrizedCurve &globalCurve, Array< Point > &quadPoints, Array< double > &quadWeights, bool &weightsChanged) const
virtual void	getAdaptedQuadWeights_polygon (int cellLID, const Mesh &mesh, const ParametrizedCurve &globalCurve, Array< Point > &quadPoints, Array< double > &quadWeights, bool &weightsChanged) const
virtual void	getAdaptedQuadWeights_surf (int cellLID, const Mesh &mesh, const ParametrizedCurve &globalCurve, Array< Point > &quadPoints, Array< double > &quadWeights, bool &weightsChanged) const
void	getTriangleQuadPoints (Array< Point > &pnt, Array< double > &weight) const
double	evalLagrangePol (int i, Array< Point > &pnt, double x) const
void	makeInterpolantQuad (double px, double py, double ofx, double ofy, int nr1DPoints, int nr2DPoints, Array< Point > &linePoints, Array< Point > &quadPoints, Array< double > &pointWeights, Array< double > &weightsOut, double areFakt) const
void	makeInterpolantBrick (int nr1DPoints, int nr3DPoints, Array< Point > &linePoints, Array< Point > &quadPoints, Array< double > &pointWeights, Array< double > &weightsOut, double areFakt) const

---

Detailed Description

Definition at line 17 of file SundanceGaussLobattoQuadrature.hpp.

---

Constructor & Destructor Documentation

GaussLobattoQuadrature::GaussLobattoQuadrature

(

int

order

)

In this case the

Definition at line 22 of file SundanceGaussLobattoQuadrature.cpp.

References nrPointin1D_, and verb_.

virtual Sundance::GaussLobattoQuadrature::~GaussLobattoQuadrature

(

)

[inline, virtual]

Definition at line 25 of file SundanceGaussLobattoQuadrature.hpp.

---

Member Function Documentation

virtual std::string Sundance::GaussLobattoQuadrature::description

(

)

const [inline, virtual]

Describable interface

Reimplemented from Sundance::QuadratureFamilyStub.

Definition at line 32 of file SundanceGaussLobattoQuadrature.hpp.

References Sundance::QuadratureFamilyStub::order(), and Sundance::toString().

double Sundance::GaussLobattoQuadrature::evalLagrangePol	(	int	i,
		Array< Point > &	pnt,
		double	x
	)			const [inline, private]

Parameters:

	i,the	i-th point
	pnt	1D points where we interpolate
	x	the position where we evaluate

Definition at line 104 of file SundanceGaussLobattoQuadrature.hpp.

Referenced by makeInterpolantBrick(), and makeInterpolantQuad().

void GaussLobattoQuadrature::getAdaptedQuadWeights	(	int	cellLID,
		const Mesh &	mesh,
		const ParametrizedCurve &	globalCurve,
		Array< Point > &	quadPoints,
		Array< double > &	quadWeights,
		bool &	weightsChanged
	)			const [protected, virtual]

Get the weights for one quad

Definition at line 566 of file SundanceGaussLobattoQuadrature.cpp.

References Sundance::Mesh::facetLID(), getLineRule(), getQuadRule(), getTriangleQuadPoints(), makeInterpolantQuad(), Sundance::Mesh::nodePosition(), quadsEdgesPoints, Sundance::Point::resize(), SUNDANCE_MSG3, and verb_.

Referenced by getAdaptedWeights().

void GaussLobattoQuadrature::getAdaptedQuadWeights_polygon	(	int	cellLID,
		const Mesh &	mesh,
		const ParametrizedCurve &	globalCurve,
		Array< Point > &	quadPoints,
		Array< double > &	quadWeights,
		bool &	weightsChanged
	)			const [protected, virtual]

Get the weights for one quad knowing that the curve is a 2D polygon

Definition at line 204 of file SundanceGaussLobattoQuadrature.cpp.

References Sundance::Mesh::facetLID(), getLineRule(), getQuadRule(), getTriangleQuadPoints(), makeInterpolantQuad(), Sundance::Mesh::nodePosition(), pi, quadsEdgesPoints, Sundance::Point::resize(), SUNDANCE_MSG3, and verb_.

Referenced by getAdaptedWeights().

void GaussLobattoQuadrature::getAdaptedQuadWeights_surf	(	int	cellLID,
		const Mesh &	mesh,
		const ParametrizedCurve &	globalCurve,
		Array< Point > &	quadPoints,
		Array< double > &	quadWeights,
		bool &	weightsChanged
	)			const [protected, virtual]

Get the weights for one quad knowing that the curve is a 3D surface

Definition at line 879 of file SundanceGaussLobattoQuadrature.cpp.

References Sundance::BrickCell, Sundance::cross(), edge3DProjection, Sundance::Mesh::facetLID(), getBrickRule(), Sundance::SundanceSurf3DCalc::getCurveQuadPoints(), getLineRule(), getTriangleQuadPoints(), makeInterpolantBrick(), Sundance::Mesh::nodePosition(), Sundance::Mesh::numFacets(), Sundance::Point::resize(), Sundance::Mesh::spatialDim(), SUNDANCE_MSG1, and SUNDANCE_MSG3.

Referenced by getAdaptedWeights().

void GaussLobattoQuadrature::getAdaptedWeights	(	const CellType &	cellType,
		int	cellDim,
		int	cellLID,
		int	facetIndex,
		const Mesh &	mesh,
		const ParametrizedCurve &	globalCurve,
		Array< Point > &	quadPoints,
		Array< double > &	quadWeights,
		bool &	weightsChanged
	)			const [protected, virtual]

Compute adapted weights according to curve

Parameters:

	cellType
	cellDim
	cellLID
	facetIndex
	mesh
	globalCurve
	quadPoints
	quadWeights
	changedWeights

Reimplemented from Sundance::QuadratureFamilyBase.

Definition at line 103 of file SundanceGaussLobattoQuadrature.cpp.

References Sundance::BrickCell, Sundance::Mesh::cellType(), getAdaptedQuadWeights(), getAdaptedQuadWeights_polygon(), getAdaptedQuadWeights_surf(), Sundance::QuadratureFamilyBase::getPoints(), Sundance::Mesh::getSpecialWeight(), Sundance::Mesh::hasSpecialWeight(), Sundance::Mesh::IsSpecialWeightValid(), Sundance::QuadCell, Sundance::Mesh::setSpecialWeight(), Sundance::Mesh::spatialDim(), SUNDANCE_ERROR, Sundance::TriangleCell, and Sundance::CurveIntegralCalc::usePolygoneCurveQuadrature().

void GaussLobattoQuadrature::getBrickRule	(	Array< Point > &	quadPoints,
		Array< double > &	quadWeights
	)			const [protected, virtual]

compute a rule for the reference brick cell

Reimplemented from Sundance::QuadratureFamilyBase.

Definition at line 76 of file SundanceGaussLobattoQuadrature.cpp.

References getLineRule().

Referenced by getAdaptedQuadWeights_surf().

void GaussLobattoQuadrature::getLineRule	(	Array< Point > &	quadPointsL,
		Array< double > &	quadWeights
	)			const [protected, virtual]

compute a rule for the reference line cell

Reimplemented from Sundance::QuadratureFamilyBase.

Definition at line 1167 of file SundanceGaussLobattoQuadrature.cpp.

References Sundance::QuadratureFamilyStub::order().

Referenced by getAdaptedQuadWeights(), getAdaptedQuadWeights_polygon(), getAdaptedQuadWeights_surf(), getBrickRule(), and getQuadRule().

void GaussLobattoQuadrature::getQuadRule	(	Array< Point > &	quadPoints,
		Array< double > &	quadWeights
	)			const [protected, virtual]

compute a rule for the reference quad cell

Reimplemented from Sundance::QuadratureFamilyBase.

Definition at line 43 of file SundanceGaussLobattoQuadrature.cpp.

References getLineRule().

Referenced by getAdaptedQuadWeights(), and getAdaptedQuadWeights_polygon().

void GaussLobattoQuadrature::getTetRule	(	Array< Point > &	quadPoints,
		Array< double > &	quadWeights
	)			const [protected, virtual]

compute a rule for the reference tet cell

Reimplemented from Sundance::QuadratureFamilyBase.

Definition at line 68 of file SundanceGaussLobattoQuadrature.cpp.

References SUNDANCE_ERROR, and toXML().

void GaussLobattoQuadrature::getTriangleQuadPoints	(	Array< Point > &	pnt,
		Array< double > &	weight
	)			const [private]

get the triangle quadrature points for the adaptive integration

Definition at line 1363 of file SundanceGaussLobattoQuadrature.cpp.

References nrPointin1D_.

Referenced by getAdaptedQuadWeights(), getAdaptedQuadWeights_polygon(), and getAdaptedQuadWeights_surf().

void GaussLobattoQuadrature::getTriangleRule	(	Array< Point > &	quadPoints,
		Array< double > &	quadWeights
	)			const [protected, virtual]

compute a rule for the reference triangle cell

Reimplemented from Sundance::QuadratureFamilyBase.

Definition at line 36 of file SundanceGaussLobattoQuadrature.cpp.

References SUNDANCE_ERROR, and toXML().

void Sundance::GaussLobattoQuadrature::makeInterpolantBrick	(	int	nr1DPoints,
		int	nr3DPoints,
		Array< Point > &	linePoints,
		Array< Point > &	quadPoints,
		Array< double > &	pointWeights,
		Array< double > &	weightsOut,
		double	areFakt
	)			const [inline, private]

this function applies quadrature to the Lagrange functions
all the coordinates are in the reference coordinates

Definition at line 159 of file SundanceGaussLobattoQuadrature.hpp.

References evalLagrangePol().

Referenced by getAdaptedQuadWeights_surf().

void Sundance::GaussLobattoQuadrature::makeInterpolantQuad	(	double	px,
		double	py,
		double	ofx,
		double	ofy,
		int	nr1DPoints,
		int	nr2DPoints,
		Array< Point > &	linePoints,
		Array< Point > &	quadPoints,
		Array< double > &	pointWeights,
		Array< double > &	weightsOut,
		double	areFakt
	)			const [inline, private]

this function applies quadrature to the Lagrange functions
all the coordinates are in the reference coordinates

Definition at line 118 of file SundanceGaussLobattoQuadrature.hpp.

References evalLagrangePol().

Referenced by getAdaptedQuadWeights(), and getAdaptedQuadWeights_polygon().

XMLObject GaussLobattoQuadrature::toXML

(

)

const [virtual]

Reimplemented from Sundance::QuadratureFamilyStub.

Definition at line 28 of file SundanceGaussLobattoQuadrature.cpp.

References Sundance::QuadratureFamilyStub::order(), and Teuchos::toString().

Referenced by getTetRule(), and getTriangleRule().

---

Member Data Documentation

int const GaussLobattoQuadrature::edge3DProjection = { 0 , 1 , 2 , 1 , 2 , 0 , 2 , 2 , 0 , 1 , 1 , 0} [static, private]

qvasi information for the 3D cut-cell integral

Definition at line 200 of file SundanceGaussLobattoQuadrature.hpp.

Referenced by getAdaptedQuadWeights_surf().

int Sundance::GaussLobattoQuadrature::nrPointin1D_ [private]

nr of points in 1D, the rest should be tensor product

Definition at line 192 of file SundanceGaussLobattoQuadrature.hpp.

Referenced by GaussLobattoQuadrature(), and getTriangleQuadPoints().

int const GaussLobattoQuadrature::quadsEdgesPoints = { {0,1} , {0,2} , {1,3} , {2,3} } [static, private]

Definition at line 197 of file SundanceGaussLobattoQuadrature.hpp.

Referenced by getAdaptedQuadWeights(), and getAdaptedQuadWeights_polygon().

int Sundance::GaussLobattoQuadrature::verb_ [private]

the verbosity of the object

Definition at line 195 of file SundanceGaussLobattoQuadrature.hpp.

Referenced by GaussLobattoQuadrature(), getAdaptedQuadWeights(), and getAdaptedQuadWeights_polygon().
