Sundance::PartitionedLineMesher Class Reference

PartitionedLineMesher meshes the one-dimensional interval $\left[a_x, b_x\right]$ with $n_x$ elements per processor. More...

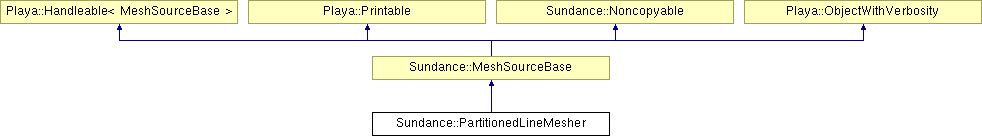

Inheritance diagram for Sundance::PartitionedLineMesher:

Sundance::MeshSourceBase Playa::Handleable< MeshSourceBase > Playa::Printable Sundance::Noncopyable Sundance::ObjectWithClassVerbosity< MeshSourceBase > Playa::ObjectWithVerbosity

List of all members.

Public Member Functions

 PartitionedLineMesher (double ax, double bx, int nx, const MeshType &meshType, const MPIComm &comm=MPIComm::world())
 Set up a mesher for the interval $\left[a_x, b_x\right]$ with $n_x$ elements per processor.
 PartitionedLineMesher (const ParameterList &params)
 Create a line mesher from a ParameterList.
virtual ~PartitionedLineMesher ()
virtual std::string description () const
 Print a short descriptive std::string.
virtual RCP< MeshSourceBase > getRcp ()
 Return a ref count pointer to self.

Private Member Functions

virtual Mesh fillMesh () const
 Fill a mesh object with data from the source.

Private Attributes

double ax_
double bx_
int nx_

Detailed Description

PartitionedLineMesher meshes the one-dimensional interval $\left[a_x, b_x\right]$ with $n_x$ elements per processor.

Definition at line 46 of file SundancePartitionedLineMesher.hpp.

Constructor & Destructor Documentation

Sundance::PartitionedLineMesher::PartitionedLineMesher ( double  ax,
double  bx,
int  nx,
const MeshType &  meshType,
const MPIComm &  comm = MPIComm::world()
) [inline]

Set up a mesher for the interval $\left[a_x, b_x\right]$ with $n_x$ elements per processor.

Definition at line 53 of file SundancePartitionedLineMesher.hpp.

PartitionedLineMesher::PartitionedLineMesher ( const ParameterList &  params  )

Create a line mesher from a ParameterList.

Definition at line 12 of file SundancePartitionedLineMesher.cpp.

virtual Sundance::PartitionedLineMesher::~PartitionedLineMesher (  )  [inline, virtual]

Definition at line 64 of file SundancePartitionedLineMesher.hpp.

Member Function Documentation

virtual std::string Sundance::PartitionedLineMesher::description (  )  const [inline, virtual]

Print a short descriptive std::string.

Reimplemented from Sundance::MeshSourceBase.

Definition at line 67 of file SundancePartitionedLineMesher.hpp.

References ax_, bx_, nx_, and Sundance::toString().

Mesh PartitionedLineMesher::fillMesh (  )  const [private, virtual]

Fill a mesh object with data from the source.

Subclass implementors will need to provide a fillMesh() for their subclass. Implementors should use the createMesh() method for the allocation of the new mesh.

Implements Sundance::MeshSourceBase.

Definition at line 19 of file SundancePartitionedLineMesher.cpp.

References Sundance::Mesh::addElement(), Sundance::Mesh::addVertex(), ax_, bx_, Sundance::checkForFailures(), Sundance::MeshSourceBase::comm(), Sundance::MeshSourceBase::createMesh(), Sundance::Mesh::mapGIDToLID(), Sundance::MeshSourceBase::myRank(), Sundance::MeshSourceBase::nProc(), nx_, Sundance::reportFailure(), Sundance::Mesh::setLabel(), SUNDANCE_OUT, SUNDANCE_TRACE_MSG, and Playa::ObjectWithVerbosity::verb().

virtual RCP<MeshSourceBase> Sundance::PartitionedLineMesher::getRcp (  )  [inline, virtual]

Return a ref count pointer to self.

Implements Playa::Handleable< MeshSourceBase >.

Definition at line 74 of file SundancePartitionedLineMesher.hpp.

Member Data Documentation

double Sundance::PartitionedLineMesher::ax_ [private]

Definition at line 82 of file SundancePartitionedLineMesher.hpp.

Referenced by description(), and fillMesh().

double Sundance::PartitionedLineMesher::bx_ [private]

Definition at line 84 of file SundancePartitionedLineMesher.hpp.

Referenced by description(), and fillMesh().

int Sundance::PartitionedLineMesher::nx_ [private]

Definition at line 86 of file SundancePartitionedLineMesher.hpp.

Referenced by description(), and fillMesh().
