Sundance::HNMesher2D Class Reference

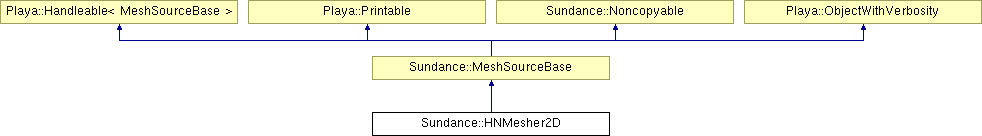

Inheritance diagram for Sundance::HNMesher2D:

List of all members.

Public Member Functions
	HNMesher2D (double position_x, double position_y, double offset_x, double offset_y, int resolution_x, int resolution_y, const MeshType &meshType, const MPIComm &comm=MPIComm::world())
	HNMesher2D (double position_x, double position_y, double offset_x, double offset_y, int resolution_x, int resolution_y, const MeshType &meshType, const RefinementClass &refineClass, const MPIComm &comm=MPIComm::world())
	HNMesher2D (double position_x, double position_y, double offset_x, double offset_y, int resolution_x, int resolution_y, const MeshType &meshType, const MeshDomainDef &meshDomain, const MPIComm &comm=MPIComm::world())
	HNMesher2D (double position_x, double position_y, double offset_x, double offset_y, int resolution_x, int resolution_y, const MeshType &meshType, const RefinementClass &refineClass, const MeshDomainDef &meshDomain, const MPIComm &comm=MPIComm::world())
	HNMesher2D (const ParameterList &params)
virtual	~HNMesher2D ()
virtual std::string	description () const
virtual RCP< MeshSourceBase >	getRcp ()
Protected Member Functions
virtual Mesh	fillMesh () const
Private Attributes
double	_position_x
double	_position_y
double	_offset_x
double	_offset_y
int	_resolution_x
int	_resolution_y
const RefinementClass	refineClass_
const MeshDomainDef	meshDomain_
Static Private Attributes
static const RefinementClass	dummyRefineClass_ = (new DummyNoRefineClass())
static const MeshDomainDef	dummyMeshDomain_ = (new DummyAllMeshDomain())

---

Detailed Description

Definition at line 47 of file SundanceHNMesher2D.hpp.

---

Constructor & Destructor Documentation

Sundance::HNMesher2D::HNMesher2D	(	double	position_x,
		double	position_y,
		double	offset_x,
		double	offset_y,
		int	resolution_x,
		int	resolution_y,
		const MeshType &	meshType,
		const MPIComm &	comm = MPIComm::world()
	)			[inline]

Definition at line 51 of file SundanceHNMesher2D.hpp.

Sundance::HNMesher2D::HNMesher2D	(	double	position_x,
		double	position_y,
		double	offset_x,
		double	offset_y,
		int	resolution_x,
		int	resolution_y,
		const MeshType &	meshType,
		const RefinementClass &	refineClass,
		const MPIComm &	comm = MPIComm::world()
	)			[inline]

Definition at line 66 of file SundanceHNMesher2D.hpp.

Sundance::HNMesher2D::HNMesher2D	(	double	position_x,
		double	position_y,
		double	offset_x,
		double	offset_y,
		int	resolution_x,
		int	resolution_y,
		const MeshType &	meshType,
		const MeshDomainDef &	meshDomain,
		const MPIComm &	comm = MPIComm::world()
	)			[inline]

Definition at line 82 of file SundanceHNMesher2D.hpp.

Sundance::HNMesher2D::HNMesher2D	(	double	position_x,
		double	position_y,
		double	offset_x,
		double	offset_y,
		int	resolution_x,
		int	resolution_y,
		const MeshType &	meshType,
		const RefinementClass &	refineClass,
		const MeshDomainDef &	meshDomain,
		const MPIComm &	comm = MPIComm::world()
	)			[inline]

Definition at line 98 of file SundanceHNMesher2D.hpp.

HNMesher2D::HNMesher2D

(

const ParameterList &

params

)

Create a rectangle mesher from a ParameterList

Definition at line 44 of file SundanceHNMesher2D.cpp.

virtual Sundance::HNMesher2D::~HNMesher2D

(

)

[inline, virtual]

Definition at line 118 of file SundanceHNMesher2D.hpp.

---

Member Function Documentation

virtual std::string Sundance::HNMesher2D::description

(

)

const [inline, virtual]

Print a short descriptive std::string

Reimplemented from Sundance::MeshSourceBase.

Definition at line 121 of file SundanceHNMesher2D.hpp.

References _offset_x, _offset_y, _position_x, _position_y, _resolution_x, _resolution_y, and Sundance::toString().

Mesh HNMesher2D::fillMesh

(

)

const [protected, virtual]

The method which all Mesher should have

Implements Sundance::MeshSourceBase.

Definition at line 58 of file SundanceHNMesher2D.cpp.

References _offset_x, _offset_y, _position_x, _position_y, _resolution_x, _resolution_y, Sundance::HNMesh2D::createMesh(), Sundance::MeshSourceBase::createMesh(), meshDomain_, Playa::Handle< PointerType >::ptr(), and refineClass_.

virtual RCP<MeshSourceBase> Sundance::HNMesher2D::getRcp

(

)

[inline, virtual]

Return a ref count pointer to self

Implements Playa::Handleable< MeshSourceBase >.

Definition at line 131 of file SundanceHNMesher2D.hpp.

---

Member Data Documentation

double Sundance::HNMesher2D::_offset_x [private]

offset (length) of the grid in the X direction

Definition at line 146 of file SundanceHNMesher2D.hpp.

Referenced by description(), and fillMesh().

double Sundance::HNMesher2D::_offset_y [private]

offset (length) of the grid in the Y direction

Definition at line 148 of file SundanceHNMesher2D.hpp.

Referenced by description(), and fillMesh().

double Sundance::HNMesher2D::_position_x [private]

X coordinate of the origin point (lower left)

Definition at line 142 of file SundanceHNMesher2D.hpp.

Referenced by description(), and fillMesh().

double Sundance::HNMesher2D::_position_y [private]

Y coordinate of the origin point (lower left)

Definition at line 144 of file SundanceHNMesher2D.hpp.

Referenced by description(), and fillMesh().

int Sundance::HNMesher2D::_resolution_x [private]

On the coarse level the resolution on the X axis

Definition at line 150 of file SundanceHNMesher2D.hpp.

Referenced by description(), and fillMesh().

int Sundance::HNMesher2D::_resolution_y [private]

On the coarse level the resolution on the Y axis

Definition at line 152 of file SundanceHNMesher2D.hpp.

Referenced by description(), and fillMesh().

const MeshDomainDef HNMesher2D::dummyMeshDomain_ = (new DummyAllMeshDomain()) [static, private]

static domain class if the user does not provide one

Definition at line 165 of file SundanceHNMesher2D.hpp.

const RefinementClass HNMesher2D::dummyRefineClass_ = (new DummyNoRefineClass()) [static, private]

static dummy class if the user does not provide refinement class

Definition at line 162 of file SundanceHNMesher2D.hpp.

const MeshDomainDef Sundance::HNMesher2D::meshDomain_ [private]

mesh domain (which must not coincide with the whole mesh)

Definition at line 158 of file SundanceHNMesher2D.hpp.

Referenced by fillMesh().

const RefinementClass Sundance::HNMesher2D::refineClass_ [private]

refinement class

Definition at line 155 of file SundanceHNMesher2D.hpp.

Referenced by fillMesh().
