Sundance::HNDoFMapBase Class Reference

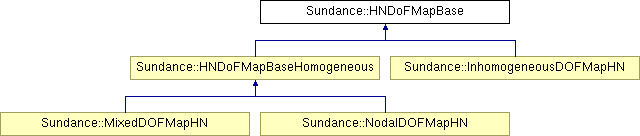

Inheritance diagram for Sundance::HNDoFMapBase:

List of all members.

Public Member Functions
	HNDoFMapBase (const Mesh &mesh, int nFuncs, int setupVerb)
virtual	~HNDoFMapBase ()
virtual void	getTrafoMatrixForCell (int cellLID, int funcID, int &trafoMatrixSize, bool &doTransform, Array< double > &transfMatrix) const =0
virtual void	getTrafoMatrixForFacet (int cellDim, int cellLID, int facetIndex, int funcID, int &trafoMatrixSize, bool &doTransform, Array< double > &transfMatrix) const =0
virtual void	getDOFsForHNCell (int cellDim, int cellLID, int funcID, Array< int > &dofs, Array< double > &coefs) const =0
int	getSpacialMeshDim () const
Private Attributes
const Mesh	mesh_

---

Detailed Description

The abstract class which extends the functionalities of the DOF map
The only additional functionality is that we have a restriction on the DOFs , with the pre-fill transformations these constraints can be build in into the matrix

Definition at line 24 of file SundanceHNDoFMapBase.hpp.

---

Constructor & Destructor Documentation

Sundance::HNDoFMapBase::HNDoFMapBase	(	const Mesh &	mesh,
		int	nFuncs,
		int	setupVerb
	)			[inline]

Empty Ctor

Definition at line 29 of file SundanceHNDoFMapBase.hpp.

virtual Sundance::HNDoFMapBase::~HNDoFMapBase

(

)

[inline, virtual]

Definition at line 31 of file SundanceHNDoFMapBase.hpp.

---

Member Function Documentation

virtual void Sundance::HNDoFMapBase::getDOFsForHNCell	(	int	cellDim,
		int	cellLID,
		int	funcID,
		Array< int > &	dofs,
		Array< double > &	coefs
	)			const [pure virtual]

Function used for plotting for hanging node DOFMaps Returns for one hanging node (element) the global DoFs which contribute to that hanging local DoF

Parameters:

	cellDim	[in] the dimension
	cellLID	[in] the LID of the cell
	funcID	[in] the function ID, (to wchich the DOFs belong)
	dofs	[out] the global DoF s
	coefs	[out] the coefficient of each global DoF

Implemented in Sundance::InhomogeneousDOFMapHN, Sundance::MixedDOFMapHN, and Sundance::NodalDOFMapHN.

Referenced by Sundance::ExprFieldWrapper::getData().

int Sundance::HNDoFMapBase::getSpacialMeshDim

(

)

const [inline]

Returns the dimension where the DoF map is defined For HN we do transformation only for the maxCell type

Definition at line 81 of file SundanceHNDoFMapBase.hpp.

References mesh_, and Sundance::Mesh::spatialDim().

virtual void Sundance::HNDoFMapBase::getTrafoMatrixForCell	(	int	cellLID,
		int	funcID,
		int &	trafoMatrixSize,
		bool &	doTransform,
		Array< double > &	transfMatrix
	)			const [pure virtual]

Parameters:

	cellLID	[in] the maxCell LID input
	funcID	[in] the function ID
	trafoMatrixSize	[in/out]
	doTransform	[out]
	transfMatrix	[out] (we assume that the array is already pre-sized )

Implemented in Sundance::InhomogeneousDOFMapHN, Sundance::MixedDOFMapHN, and Sundance::NodalDOFMapHN.

virtual void Sundance::HNDoFMapBase::getTrafoMatrixForFacet	(	int	cellDim,
		int	cellLID,
		int	facetIndex,
		int	funcID,
		int &	trafoMatrixSize,
		bool &	doTransform,
		Array< double > &	transfMatrix
	)			const [pure virtual]

Function to apply transformation for facets

Parameters:

	cellDim,the	facet dimension
	cellLID,facet	LID
	facetIndex,facet	index in the maxCofacet
	funcID	[in] the function ID
	trafoMatrixSize	[in/out]
	doTransform	[out]
	transfMatrix	[out] (we assume that the array is already pre-sized )

Implemented in Sundance::InhomogeneousDOFMapHN, Sundance::MixedDOFMapHN, and Sundance::NodalDOFMapHN.

---

Member Data Documentation

const Mesh Sundance::HNDoFMapBase::mesh_ [private]

Definition at line 87 of file SundanceHNDoFMapBase.hpp.

Referenced by getSpacialMeshDim().
