Sundance::ExodusWriter Class Reference

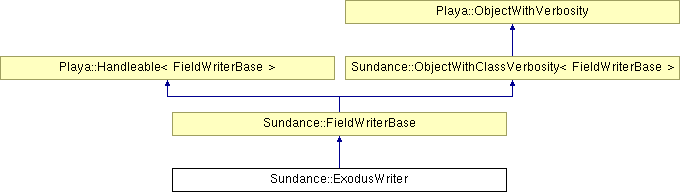

Inheritance diagram for Sundance::ExodusWriter:

List of all members.

Public Member Functions
	ExodusWriter (const std::string &filename)
virtual	~ExodusWriter ()
virtual void	write () const
virtual RCP< FieldWriterBase >	getRcp ()
void	writeParallelInfo (const std::string &filename) const
Private Member Functions
void	getCharpp (const Array< std::string > &s, Array< const char * > &p) const
void	findNodeSets (Array< CellFilter > &nodesetFilters, Array< int > &omnipresentFuncs, Array< RCP< Array< int > > > &funcsForNodeset, Array< RCP< Array< int > > > &nodesForNodeset, Array< int > &nsID, Array< int > &nNodesPerSet, Array< int > &nsNodePtr, RCP< Array< int > > allNodes) const
void	findBlocks (Array< CellFilter > &blockFilters, Array< int > &omnipresentFuncs, Array< RCP< Array< int > > > &funcsForBlock, Array< RCP< Array< int > > > &elemsForBlock, Array< int > &elemIDs, Array< int > &nElemsPerBlock, Array< int > &blockElemPtr, RCP< Array< int > > allElems) const
void	offset (Array< int > &x) const
std::string	elemType (const CellType &type) const
void	writeMesh (int exoID, const Array< CellFilter > &nodesetFilters, const Array< int > &nsID, const Array< int > &nNodesPerSet, const Array< int > &nsNodePtr, const RCP< Array< int > > &allNodes) const
void	writeFields (int exoID, const Array< CellFilter > &nodesetFilters, const Array< int > &omnipresentNodalFuncs, const Array< int > &omnipresentElemFuncs, const Array< RCP< Array< int > > > &funcsForNodeset, const Array< RCP< Array< int > > > &nodesForNodeset, const Array< int > &nsID) const

---

Detailed Description

ExodusWriter writes a mesh or fields to an ExodusII file

Definition at line 44 of file SundanceExodusWriter.hpp.

---

Constructor & Destructor Documentation

Sundance::ExodusWriter::ExodusWriter

(

const std::string &

filename

)

[inline]

Definition at line 48 of file SundanceExodusWriter.hpp.

virtual Sundance::ExodusWriter::~ExodusWriter

(

)

[inline, virtual]

virtual dtor

Definition at line 52 of file SundanceExodusWriter.hpp.

---

Member Function Documentation

std::string ExodusWriter::elemType

(

const CellType &

type

)

const [private]

Definition at line 516 of file SundanceExodusWriter.cpp.

References Sundance::TetCell, and Sundance::TriangleCell.

Referenced by writeMesh().

void ExodusWriter::findBlocks	(	Array< CellFilter > &	blockFilters,
		Array< int > &	omnipresentFuncs,
		Array< RCP< Array< int > > > &	funcsForBlock,
		Array< RCP< Array< int > > > &	elemsForBlock,
		Array< int > &	elemIDs,
		Array< int > &	nElemsPerBlock,
		Array< int > &	blockElemPtr,
		RCP< Array< int > >	allElems
	)			const [private]

Definition at line 657 of file SundanceExodusWriter.cpp.

References Sundance::FieldWriterBase::cellScalarFields(), Sundance::cellSetToLIDArray(), Sundance::Map< Key, Value, Compare >::containsKey(), Sundance::CellFilter::getCells(), Sundance::FieldWriterBase::mesh(), Sundance::Map< Key, Value, Compare >::put(), SUNDANCE_MSG2, and Playa::ObjectWithVerbosity::verb().

Referenced by write().

void ExodusWriter::findNodeSets	(	Array< CellFilter > &	nodesetFilters,
		Array< int > &	omnipresentFuncs,
		Array< RCP< Array< int > > > &	funcsForNodeset,
		Array< RCP< Array< int > > > &	nodesForNodeset,
		Array< int > &	nsID,
		Array< int > &	nNodesPerSet,
		Array< int > &	nsNodePtr,
		RCP< Array< int > >	allNodes
	)			const [private]

Definition at line 567 of file SundanceExodusWriter.cpp.

References Sundance::cellSetToLIDArray(), Sundance::connectedNodeSet(), Sundance::Map< Key, Value, Compare >::containsKey(), Sundance::FieldWriterBase::mesh(), Sundance::FieldWriterBase::pointScalarFields(), Sundance::Map< Key, Value, Compare >::put(), SUNDANCE_MSG2, SUNDANCE_MSG4, and Playa::ObjectWithVerbosity::verb().

Referenced by write().

void ExodusWriter::getCharpp	(	const Array< std::string > &	s,
		Array< const char * > &	p
	)			const [private]

Definition at line 744 of file SundanceExodusWriter.cpp.

Referenced by writeFields(), and writeMesh().

virtual RCP<FieldWriterBase> Sundance::ExodusWriter::getRcp

(

)

[inline, virtual]

Return a ref count pointer to self

Implements Playa::Handleable< FieldWriterBase >.

Definition at line 58 of file SundanceExodusWriter.hpp.

void ExodusWriter::offset

(

Array< int > &

x

)

const [private]

Definition at line 113 of file SundanceExodusWriter.cpp.

Referenced by writeMesh().

void ExodusWriter::write

(

)

const [virtual]

Implements Sundance::FieldWriterBase.

Definition at line 50 of file SundanceExodusWriter.cpp.

References Sundance::FieldWriterBase::filename(), findBlocks(), findNodeSets(), Sundance::FieldWriterBase::myRank(), Sundance::FieldWriterBase::nProc(), Sundance::toString(), writeFields(), writeMesh(), and writeParallelInfo().

void ExodusWriter::writeFields	(	int	exoID,
		const Array< CellFilter > &	nodesetFilters,
		const Array< int > &	omnipresentNodalFuncs,
		const Array< int > &	omnipresentElemFuncs,
		const Array< RCP< Array< int > > > &	funcsForNodeset,
		const Array< RCP< Array< int > > > &	nodesForNodeset,
		const Array< int > &	nsID
	)			const [private]

Definition at line 320 of file SundanceExodusWriter.cpp.

References Sundance::FieldWriterBase::cellScalarFields(), Sundance::FieldWriterBase::cellScalarNames(), Sundance::Map< Key, Value, Compare >::containsKey(), Sundance::Set< Key, Compare >::elements(), Sundance::Map< Key, Value, Compare >::get(), getCharpp(), Sundance::FieldWriterBase::mesh(), Sundance::Mesh::numCells(), PLAYA_ROOT_MSG1, PLAYA_ROOT_MSG2, Sundance::FieldWriterBase::pointScalarFields(), Sundance::FieldWriterBase::pointScalarNames(), Sundance::Map< Key, Value, Compare >::put(), Sundance::Set< Key, Compare >::put(), Sundance::Mesh::spatialDim(), and Playa::ObjectWithVerbosity::verb().

Referenced by write().

void ExodusWriter::writeMesh	(	int	exoID,
		const Array< CellFilter > &	nodesetFilters,
		const Array< int > &	nsID,
		const Array< int > &	nNodesPerSet,
		const Array< int > &	nsNodePtr,
		const RCP< Array< int > > &	allNodes
	)			const [private]

Definition at line 119 of file SundanceExodusWriter.cpp.

References Sundance::Set< Key, Compare >::elements(), elemType(), Sundance::FieldWriterBase::filename(), Sundance::Mesh::getAllLabelsForDimension(), getCharpp(), Sundance::Mesh::getFacetLIDs(), Sundance::Mesh::getLIDsForLabel(), Sundance::Mesh::getMaxCofacetLIDs(), Sundance::MaximalCofacetBatch::getSpecifiedCofacets(), Sundance::FieldWriterBase::mesh(), Sundance::Mesh::nodePosition(), Sundance::Mesh::numCells(), Sundance::Mesh::numLabels(), offset(), sort(), Sundance::Mesh::spatialDim(), and Sundance::ufcFacetIndexToExFacetIndex().

Referenced by write().

void ExodusWriter::writeParallelInfo

(

const std::string &

filename

)

const

Definition at line 533 of file SundanceExodusWriter.cpp.

References Sundance::FieldWriterBase::comments(), Sundance::Mesh::mapLIDToGID(), Sundance::FieldWriterBase::mesh(), Sundance::FieldWriterBase::myRank(), Sundance::FieldWriterBase::nProc(), Sundance::Mesh::numCells(), Sundance::Mesh::ownerProcID(), and Sundance::Mesh::spatialDim().

Referenced by write().
