Sundance::SpatiallyHomogeneousDOFMapBase Class Reference

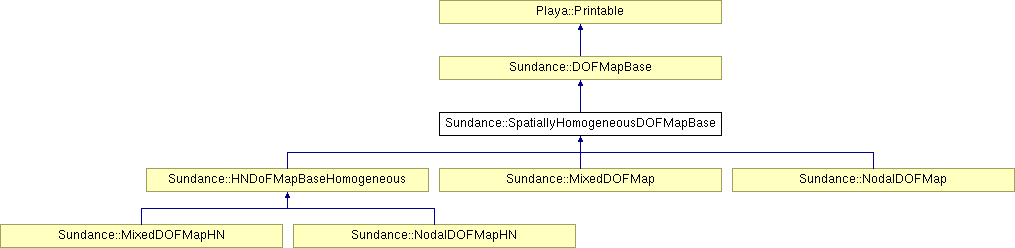

Inheritance diagram for Sundance::SpatiallyHomogeneousDOFMapBase:

List of all members.

Public Member Functions
	SpatiallyHomogeneousDOFMapBase (const Mesh &mesh, int nTotalFuncs, int setupVerb)
virtual	~SpatiallyHomogeneousDOFMapBase ()
virtual RCP< const MapStructure >	mapStruct () const =0
virtual RCP< const Set< int > >	allowedFuncsOnCellBatch (int cellDim, const Array< int > &cellLID) const
	Return the set of a function IDs for a batch of cells for which DOFs can be obtained.
bool	isHomogeneous () const
	Returns true if the map is homogeneous.
void	print (std::ostream &os) const
	Print the DOF map.
const Array< CellFilter > &	funcDomains () const
	Return an array of cell filters that gives, for each function ID, the cells that the function lives on.
Private Attributes
RCP< const Set< int > >	allowedFuncs_
Array< CellFilter >	funcDomains_

---

Detailed Description

Definition at line 45 of file SundanceSpatiallyHomogeneousDOFMapBase.hpp.

---

Constructor & Destructor Documentation

SpatiallyHomogeneousDOFMapBase::SpatiallyHomogeneousDOFMapBase	(	const Mesh &	mesh,
		int	nTotalFuncs,
		int	setupVerb
	)

Definition at line 41 of file SundanceSpatiallyHomogeneousDOFMapBase.cpp.

virtual Sundance::SpatiallyHomogeneousDOFMapBase::~SpatiallyHomogeneousDOFMapBase

(

)

[inline, virtual]

Definition at line 54 of file SundanceSpatiallyHomogeneousDOFMapBase.hpp.

---

Member Function Documentation

virtual RCP<const Set<int> > Sundance::SpatiallyHomogeneousDOFMapBase::allowedFuncsOnCellBatch	(	int	cellDim,
		const Array< int > &	cellLIDs
	)			const [inline, virtual]

Return the set of a function IDs for a batch of cells for which DOFs can be obtained.

Parameters:

	cellDim	[in] The dimension of the cells in the batch of cells
	cellLIDs	[in] Local IDs (LIDs) for the batch of cells

Implements Sundance::DOFMapBase.

Definition at line 61 of file SundanceSpatiallyHomogeneousDOFMapBase.hpp.

References allowedFuncs_.

const Array<CellFilter>& Sundance::SpatiallyHomogeneousDOFMapBase::funcDomains

(

)

const [inline, virtual]

Return an array of cell filters that gives, for each function ID, the cells that the function lives on.

Returns:

A reference to an array of size returnVal.size() == numTotalFunctcions where returnVal[funcID] gives a handle to a CellFilterBase object where the function funcID lives, where 0 <= funcID < numTotalFunctions.

Implements Sundance::DOFMapBase.

Definition at line 72 of file SundanceSpatiallyHomogeneousDOFMapBase.hpp.

References funcDomains_.

bool Sundance::SpatiallyHomogeneousDOFMapBase::isHomogeneous

(

)

const [inline, virtual]

Returns true if the map is homogeneous.

See above defintion for a "Homogeneous" map.

Reimplemented from Sundance::DOFMapBase.

Definition at line 66 of file SundanceSpatiallyHomogeneousDOFMapBase.hpp.

virtual RCP<const MapStructure> Sundance::SpatiallyHomogeneousDOFMapBase::mapStruct

(

)

const [pure virtual]

Implemented in Sundance::MixedDOFMap, Sundance::MixedDOFMapHN, Sundance::NodalDOFMap, and Sundance::NodalDOFMapHN.

Referenced by print().

void SpatiallyHomogeneousDOFMapBase::print

(

std::ostream &

os

)

const [virtual]

Print the DOF map.

ToDo: Replace this with override of Teuchos::Describable::describe().

Implements Sundance::DOFMapBase.

Definition at line 54 of file SundanceSpatiallyHomogeneousDOFMapBase.cpp.

References Sundance::Mesh::comm(), Sundance::DOFMapBase::getDOFsForCell(), Sundance::Mesh::getFacetArray(), Playa::MPIComm::getNProc(), Playa::MPIComm::getRank(), Sundance::DOFMapBase::isLocalDOF(), Sundance::Mesh::mapLIDToGID(), mapStruct(), Sundance::DOFMapBase::mesh(), Sundance::Mesh::nodePosition(), Sundance::Mesh::numCells(), Sundance::Mesh::spatialDim(), and Playa::MPIComm::synchronize().

---

Member Data Documentation

RCP<const Set<int> > Sundance::SpatiallyHomogeneousDOFMapBase::allowedFuncs_ [private]

Definition at line 75 of file SundanceSpatiallyHomogeneousDOFMapBase.hpp.

Referenced by allowedFuncsOnCellBatch().

Array<CellFilter> Sundance::SpatiallyHomogeneousDOFMapBase::funcDomains_ [private]

Definition at line 76 of file SundanceSpatiallyHomogeneousDOFMapBase.hpp.

Referenced by funcDomains().
