Sundance::MeshBase Class Reference

Abstract interface to a mesh. More...

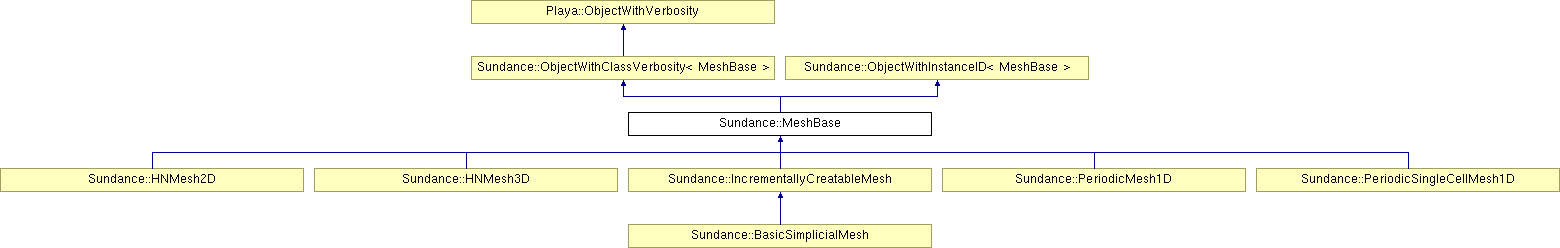

Inheritance diagram for Sundance::MeshBase:

List of all members.

Public Member Functions

Constructors/Destructor

MeshBase (int dim, const MPIComm &comm, const MeshEntityOrder &meshOrder)

virtual ~MeshBase ()

Topological Information

const MeshEntityOrder & meshOrder () const

Get the ordering convention used by this mesh.

int spatialDim () const

Get the spatial dimension of the mesh.

virtual int numCells (int cellDim) const =0

Get the number of local cells having dimension cellDim.

virtual int numFacets (int cellDim, int cellLID, int facetDim) const =0

Return the number of facets of the given relative cell.

virtual int facetLID (int cellDim, int cellLID, int facetDim, int facetIndex, int &facetOrientation) const =0

Return the LID of a single facet cell (and optionally its orientation) with respect to a relative parent cell.

virtual void getFacetLIDs (int cellDim, const Array< int > &cellLIDs, int facetDim, Array< int > &facetLIDs, Array< int > &facetOrientations) const =0

Return an array containing the LIDs of facets of dimension facetDim for the given batch of relative parent cells.

void getFacetArray (int cellDim, int cellLID, int facetDim, Array< int > &facetLIDs, Array< int > &facetOrientations) const

Return an array containing the LIDs of the facets of dimension facetDim of the single relative parent cell (optionally also returning the facet orientations).

virtual const int * elemZeroFacetView (int maxCellLID) const

Return a view of an array of LIDs for a maximum-dimensional cell's zero-dimensional facets (i.e. vertexes).

virtual int numMaxCofacets (int cellDim, int cellLID) const =0

Return the number of maximal co-facets of the given cell.

virtual int maxCofacetLID (int cellDim, int cellLID, int cofacetIndex, int &facetIndex) const =0

Return the LID of a maximal co-facet of a cell.

virtual void getMaxCofacetLIDs (const Array< int > &cellLIDs, MaximalCofacetBatch &cofacets) const

virtual void getCofacets (int cellDim, int cellLID, int cofacetDim, Array< int > &cofacetLIDs) const =0

Return an array of the LIDs of all of the co-facets for a given relative cell.

virtual CellType cellType (int cellDim) const =0

Get the cell type of the given cell dimension.

virtual int label (int cellDim, int cellLID) const =0

Get the label of the given cell.

void getLabels (int cellDim, const Array< int > &cellLIDs, Array< int > &labels) const

Get the labels for a batch of cells.

virtual void setLabel (int cellDim, int cellLID, int label)=0

Set the label for the given cell.

virtual Set< int > getAllLabelsForDimension (int cellDim) const

virtual void getLIDsForLabel (int cellDim, int label, Array< int > &cellLIDs) const

Geometric Information

virtual Point nodePosition (int vertexLID) const =0

Return the position of a local vertex.

virtual const double * nodePositionView (int vertexLID) const =0

Return a const view into an raw array for the position of a local vertex.

virtual Point centroid (int cellDim, int cellLID) const

Return the centroid of a cell.

virtual void getJacobians (int cellDim, const Array< int > &cellLID, CellJacobianBatch &jBatch) const

Compute (or get) the Jacobians for a batch of cells.

virtual void getCellDiameters (int cellDim, const Array< int > &cellLIDs, Array< double > &diameters) const

Compute the diameters of a batch of cells.

virtual void outwardNormals (const Array< int > &cellLIDs, Array< Point > &outwardNormals) const

virtual void tangentsToEdges (const Array< int > &cellLIDs, Array< Point > &tangenVectors) const

virtual void pushForward (int cellDim, const Array< int > &cellLIDs, const Array< Point > &refPts, Array< Point > &physPts) const

Map points from a reference cell to physical points for a batch of cells.

Parallel Information

const MPIComm & comm () const

Return the MPI communicator over which this mesh is distributed.

virtual int ownerProcID (int cellDim, int cellLID) const =0

Return the rank of the processor that owns the given cell.

virtual bool hasGID (int cellDim, int cellGID) const =0

Determine whether a given cell GID exists on this processor.

virtual int mapGIDToLID (int cellDim, int cellGID) const =0

Find the LID of a cell given its GID.

virtual int mapLIDToGID (int cellDim, int cellLID) const =0

Find the global ID of a cell given its LID.

virtual bool hasIntermediateGIDs (int cellDim) const =0

Return if cells of dimension cellDim have been assigned global IDs or not.

virtual void assignIntermediateCellGIDs (int cellDim)=0

Assign global IDs to cells of dimension cellDim.

Reordering

void setReorderer (const CellReorderer &reorderer)

Set the reordering strategy to be used with this mesh.

const CellReordererImplemBase * reorderer () const

Get the reordering strategy to be used with this mesh.

Functions for Mesh with hanging nodes

virtual bool allowsHangingHodes () const

virtual bool isElementHangingNode (int cellDim, int cellLID) const

virtual int indexInParent (int maxCellLID) const

virtual int maxChildren () const

virtual void returnParentFacets (int childCellLID, int dimFacets, Array< int > &facetsLIDs, int &parentCellLIDs) const

Store special weights in the mesh (for Adaptive Cell Integration)

virtual bool IsSpecialWeightValid () const

virtual void setSpecialWeightValid (bool val) const

virtual void flushSpecialWeights () const

virtual bool hasSpecialWeight (int dim, int cellLID) const

virtual void setSpecialWeight (int dim, int cellLID, Array< double > &w) const

virtual void getSpecialWeight (int dim, int cellLID, Array< double > &w) const

Static Public Member Functions

Output

static bool & staggerOutput ()

Set whether to stagger output in parallel. Set to true for readable output in parallel debugging sessions.

Private Attributes

int dim_

MPIComm comm_

MeshEntityOrder order_

RCP< CellReordererImplemBase > reorderer_

bool validWeights_

Array< Sundance::Map< int,
Array< double > > > specialWeights_

bool curvePoints_Are_Valid_

int nrCurvesForIntegral_

Array< Sundance::Map< int,
Array< Point > > > curvePoints_

Array< Sundance::Map< int,
Array< Point > > > curveDerivative_

Array< Sundance::Map< int,
Array< Point > > > curveNormal_

Sundance::Map< int, int > curveID_to_ArrayIndex_

Store the intersection/quadrature points for the curve/surf integral <br>

for a curve or surf integral we need some quadrature points along the curve in one curve
These

virtual bool IsCurvePointsValid () const

virtual void setCurvePointsValid (bool val) const

virtual void flushCurvePoints () const

virtual bool hasCurvePoints (int maxCellLID, int curveID) const

virtual void setCurvePoints (int maxCellLID, int curveID, Array< Point > &points, Array< Point > &derivs, Array< Point > &normals) const

virtual void getCurvePoints (int maxCellLID, int curveID, Array< Point > &points, Array< Point > &derivs, Array< Point > &normals) const

virtual int mapCurveID_to_Index (int curveID) const

Detailed Description

Abstract interface to a mesh.

Outline

Introduction

A mesh is a collection of connected cells (also called elements). This mesh interface is designed to allow for the representation of 1D, 2D, and 3D (and even higher dimensional) meshes. A mesh contains both topological information and geometric information about the cells and their subparts (i.e. facets). Topological information refers to information about how cells of various types and dimensions are connected to each other within the mesh. Geometric information refers to information about the position, size, and shape of cells within the mesh.

Currently, this interface only handles meshes where all cells of a given cell dimension have the same cell type. For example, this only allows meshes with all triangles or all quads in 2D or all tetrahedrals in 3D.

Todo:: Add some diagrams to show different cell types to help define cells, facets, co-facets, vertices, etc.

Definitions

The following definitions are used in the specification of this mesh interface.

Topological information
- Spatial Dimension (spatialDim): The maximum cell dimension of any cell type in the mesh. For example, a 3D mesh will have spatialDim=3, a 2D mesh will have spatialDim=2 and a 1D mesh will have spatialDim=1. Typically, when we use the short hand 1D, 2D or 3D, we are referring to the spatial dimension of the mesh. Note that 4D and higher-dimensional meshes are also representable by this interface in principle with some small changes (e.g. like making the size of a point more flexible)
- Cell: A mesh object of some dimension. For example, in a 3D mesh, cells are things like elements, faces, edges, and nodes.
- Cell Type (cellType): An enumeration of type CellType that lists some common cell types. For example, common cell types are things like vertexes (0D), lines or edges (1D), triangles (2D), and quadrilaterals (2D).
- Cell Dimension (cellDim): The dimension of a cell. More formally, the cell dimension is equal to the number of lower level facet types in the cell. For example, A 3D tetrahedral cell (or element) has cellDim=3 and it has the three lower-level facet types faces (cellDim=2), edges (cellDim=1), and vertexes (cellDim=0).
- Relative Cell: The term "relative cell" is used below to refer to the cell object for which we consider other cells called "facets" and "co-facets".
- Facet: A lower dimensional cell directly connected to and contained within a relative parent cell. For example, a 3D cell (element) has three different facet types: faces (facetDim=2), edges (facetDim=1), and vertexes (facetDim=0). A face (cellDim=2) relative cell (or a 2D element) has two different facet types: edges (facetDim=1), and vertexes (facetDim=0). A particular relative cell (cellDim,cellLID) has nf=numFacets(cellDim,cellLID,facetDim) facets of a particular dimension facetDim.
- Facet Dim (facetDim): The cell dimension of a given facet. For example, the dimension of a face facet of a 3D element is facetDim=2.
- Facet Index (facetIndex): This is the local index of the facet with respect to its relative parent cell. For example, a 3D brick relative cell/element will have 6 faces which can be accessed using the facet indexes 0, 1, 2, 3, 4, and 5.
- Co-facet: A higher dimensional cell of which the given relative cell is a facet. For example, the co-facets of a relative face cell in a 3D mesh are the one or two 3D element cells that share this face. In the case of a boundary face in a 3D mesh, only one co-facet is connected to the boundary cell and that is its boundary element. Note that in 3D, edges can have many different face and element co-facets. There are some important properties of co-facets. Relative cells of dimension cellDim=spatialDim-1 will have either one or two co-facets of dimension cofacetDim=spatialDim. Therefore, relative cells of the dimension cellDim=spatialDim-1 that have only one co-facet must be a boundary cell (i.e. a boundary face in 3D, a boundary edge in 2D, or a boundary vertex in 1D). Note that relative cells with dimension cellDim=spatialDim-n, where n >=2, can have more than two co-facets in general.
- Co-facet Dimension (cofacetDim): The cell dimension of a co-facet cell.
- Maximal co-facet: A co-facet of a relative cell whose dimension is equal to the spatial dimension of the mesh.
  Assertion: maxCofacetDim == spatialDim.
- Vertex: A zero dimensional cell (cellDim=0).
  Assertion: vertexCellDim == 0.
- Element: The term "element" is used to refer to cells whose dimension is equal to the spatial dimension of the mesh. Warning, the term "element" is an overloaded term and is also used to refer to an entry in an array of objects.
- Facet orientation (facetOrientation): The orientation of a facet with respect to its parent cell. This is given as an integer value that requires agreement of interpretation. In 2D, an edge for instance will have just a positive and a negative orientation. In 3D, a face can have more than two orientations and each orientation is a permutation of the different nodal listings on the face. The facet orientation integer value is typically interpreted as an index into an array of possible orientations. The mesh reader/creator and the assembly code have to agree on how these orientations are interpreted.
- Co-facet index (cofacetIndex): The relative index of a co-facet of some relative cell. For example, an internal face in a 3D mesh will have two co-facet element objects which can be accessed using the co-facet indexes 0 and 1.
- Label: Every cell can be given a single integer value that can be used in a variety of ways. For example, boundary faces in 3D can be given an integer label to specify different types of boundary conditions. This integer could also be used with bit manipulation to allow for multiple classifications for a single cell.
- Intermediate Cell: An intermediate cell is a cell that has a dimension cellDim in the range 0 < cellDim < spatialDim. For example, in a 3D mesh, faces and edges are intermediate cell types.
Geometric information
- Point: A point is an array of coordinate positions. Currently this is stored as a array with three doubles (i.e. x=0, y=1, and z=2). For 2D meshes only the x=0 and y=1 positions are used. For 1D meshes, only the x=0 position is used.
- Cell Centroid: A point that represents the geometric center of a cell.
- Cell Diameter: The cell diameter is defined as the maximum line segment that can be drawn in the cell. This gives a measure of how big the cell is and, for instance, can be used in some types of finite-element stabilization methods.
- Cell Curvature: The curvature of cell refers to the shape of a cell. This is typically used to represent the shapes of faces in 3D or edges in 2D which is critical in the implementation of higher-order higher-order discrimination methods. Cell curvature is currently not supported by this mesh interface but could be in the future.
- Reference Cell: The term "reference cell" is used below to refer that a cell type's reference cell which is a geometric description of the cell in a simple coordinate system. By using a standard definition of a "reference cell", we can decouple different types of mathematical operations defined of a cell of a certain basic type (e.g. triangles and quadrilaterals in 2D, and tetrahedral and bricks in 3D). Typically, the nodes of a reference cell will have coordinates that integer multiples of one (including zero).
- Cell Jacobian: The cell Jacobian is a transformation matrix that maps cell vertex coordinate values (i.e. points) from the reference cell to the physical cell. The inverse of the cell Jacobian maps points from the physical cell to the reference cell. A cell with the cell dimension cellDim has a cell Jacobian matrix of dimension cellDim x cellDim.
Parallel Information
- Cell Ownership: The ownership of a cell refers to which process owns the cell. All other processes that need to access that cell get a "ghost" copy of the cell locally.
- Ghost Cell: A ghost cell is a cell that is not owned by the local process that is copied to a process in order to perform certain computations.
- Cell Local ID (cellLID): The LID of a cell is an index to the cell within the local process and these IDs are typically ordered from 0 to numLocalCells-1. Local cells can include both owned cells and ghosted cells.
- Cell Global ID (cellGID): The global ID of a cell is an index that is unique across all processes and is used as a process-independent identifier for the cell.

Common Function Arguments and Pre/Post-Conditions

Below, a common set of Mesh arguments are described along with relevant pre- and post conditions.

cellDim [in] The dimension of a cell
Precondition: 0 <= cellDim <= spatialDim
cellLID(s) [in] Local ID (LID) of a cell(s).
Precondition: 0 <= cellLID < numCells(cellDim), where cellDim is the dimension of the given cell.
cellGID [in] Global ID (GID) of a cell which is unique across processes.
Precondition: ??? <= cellGID < ??? (How do we write this?).
facetDim [in] The dimension of a given facet cell.
Precondition: 0 <= facetDim < cellDim, where cellDim is the dimension of the relative cell
facetIndex [in] Local index of the facet with respect to its parent relative cell.
Precondition: 0 <= facetIndex < numFacets(cellDim,cellLID,facetDim), where facetDim is the dimension of the facet of the relative parent cell (cellDim,cellLID)
facetOrientation(s) [out] The orientation of a facet with respect to its parent cell. This is given as an integer value that requires agreement of interpretation (see above).
cofacetDim [in] Cell dimension of a co-facet cell.
Precondition: 0 <= cellDim < cofacetDim <= spatialDim, where cellDim is the dimension of the relative cell
cofacetIndex [in] Relative index of a co-facet of some relative cell.
Precondition: 0 <= cofacetIndex < numMaxCofacets(cellDim,cellLID), where (cellDim,cellLID) is the relative cell.

Possible Refactorings

Copy ObjectWithInstanceID base class into a special Nihilo tools package or into Teuchos.
Inherit MeshBase from Teuchos::VerboseObject instead of ObjectWithVerbosity.
Remove any concrete implementations and data from this base interface to provide a clean abstract interface. This would include removing the constructor.
Either remove the non-batch access functions all together, or make the namings of batch and non-batch access functions more consistent.
Have all of the functions return just a single return value or when more than one object is returned, return all values from the argument list. Or, when the value that is being returned from the argument list is only occasionally returned, change it to a pointer type and give it a default value of NULL so that it can be safely ignored! This will actually speed up performance in some cases. For example, facetOrientation is a return argument that is often ignored and would benefit from making it an optional argument.
Remove the staggered output function since the Teuchos::FancyOStream should handle parallel output from every process well.
Add a new cell type called a "general" cell for very irregular cells that defy fixed classification. This could be used to represent many of the irregular cells that remain after non-conforming mesh refinement.
Make sure to tell the DOF map how to interpret the facet orientation integers. Currently the interpretation is hard coded in Sundance. These permutations need to be enumerated in a C++ enum and the DOF map must be given the array of these enums to interpret the orientation integer values. To be 100 percent safe, we need a way of allowing the mesh to directly return the interpretation of these orientations. What you can do is to require that the int value be an index into an an array of enumeration values that corresponds to the cell type. This would require an enum type and an array of enum values for every facet cell type. For the current cell types for regular elements, this would be no problem. However, for the facets of a "general" cell type, the facets may also be classified as "general" cell types and therefore may not allow such an orientation array to be defined.
Clearly define the coordinate system of the reference cell of each of the standard cell types in order to clearly define interpretation of the reference points passed into the pushForward() function. Without a clear definition of the reference cell, these reference points are meaningless. Actually, for maximal flexibility, each cell type should define, at runtime, the coordinate system for the reference cell. Or, we must just all agree on a single set of standard definitions of reference cells for different cell types.

Definition at line 381 of file SundanceMeshBase.hpp.

Constructor & Destructor Documentation

MeshBase::MeshBase	(	int	dim,
		const MPIComm &	comm,
		const MeshEntityOrder &	meshOrder
	)

Definition at line 45 of file SundanceMeshBase.cpp.

References curveDerivative_, curveNormal_, curvePoints_, dim_, and specialWeights_.

virtual Sundance::MeshBase::~MeshBase ( ) [inline, virtual]

Definition at line 395 of file SundanceMeshBase.hpp.

Member Function Documentation

virtual bool Sundance::MeshBase::allowsHangingHodes ( ) const [inline, virtual]

Function returns true if the mesh allows hanging nodes (by refinement), false otherwise

Reimplemented in Sundance::HNMesh2D, and Sundance::HNMesh3D.

Definition at line 930 of file SundanceMeshBase.hpp.

virtual void Sundance::MeshBase::assignIntermediateCellGIDs ( int cellDim ) [pure virtual]

Assign global IDs to cells of dimension cellDim.

Parameters:

cellDim

[in] Dimension of the cell

Postconditions:

hasIntermediateGIDs(cellDim)==true

Implemented in Sundance::BasicSimplicialMesh, Sundance::HNMesh2D, Sundance::HNMesh3D, Sundance::PeriodicMesh1D, and Sundance::PeriodicSingleCellMesh1D.

virtual CellType Sundance::MeshBase::cellType ( int cellDim ) const [pure virtual]

Get the cell type of the given cell dimension.

Note: This function by its very definition assumes that all cells of a given dimension have the same cell type within a mesh!

Todo:: This function must be changed in order to deal with mixed cell types with the same cellDim!

Implemented in Sundance::BasicSimplicialMesh, Sundance::HNMesh2D, Sundance::HNMesh3D, Sundance::PeriodicMesh1D, and Sundance::PeriodicSingleCellMesh1D.

Point MeshBase::centroid	(	int	cellDim,
		int	cellLID
	)			const `[virtual]`

Return the centroid of a cell.

The default implementation just averages the positions of the zero-dimensional facets (i.e. vertexes).

Definition at line 73 of file SundanceMeshBase.cpp.

References facetLID(), nodePosition(), and numFacets().

Referenced by outwardNormals().

const MPIComm& Sundance::MeshBase::comm ( ) const [inline]

Return the MPI communicator over which this mesh is distributed.

Definition at line 848 of file SundanceMeshBase.hpp.

References comm_.

Referenced by Sundance::BasicSimplicialMesh::addEdge(), Sundance::BasicSimplicialMesh::addElement(), Sundance::BasicSimplicialMesh::addFace(), Sundance::BasicSimplicialMesh::addVertex(), Sundance::BasicSimplicialMesh::assignIntermediateCellGIDs(), Sundance::BasicSimplicialMesh::printCells(), Sundance::BasicSimplicialMesh::resolveEdgeOwnership(), Sundance::BasicSimplicialMesh::synchronizeGIDNumbering(), and Sundance::BasicSimplicialMesh::synchronizeNeighborLists().

const int * MeshBase::elemZeroFacetView ( int maxCellLID ) const [virtual]

Return a view of an array of LIDs for a maximum-dimensional cell's zero-dimensional facets (i.e. vertexes).

Parameters:

maxCellLID

[in] Local ID of the maximum dimensional cell (i.e. element).

Preconditions:

The cell maxCellLID must be a maximum-dimensional cell!

Returns:: A raw pointer into an array which stores the local process IDs of the vertices. These IDs are the local process IDs, not the facet indexes relative to the relative parent cell. The dimension of this array is determined by the cell type given by cellType(maxCellLID).

Todo:: Return this array as a Teuchos::ArrayView<int> object which will have the dimension embedded in it and will have full range checking!

Todo:: Rename to something like getMaxCellZeroFacetsLIDsView(...).

Reimplemented in Sundance::BasicSimplicialMesh, Sundance::HNMesh2D, Sundance::HNMesh3D, Sundance::PeriodicMesh1D, and Sundance::PeriodicSingleCellMesh1D.

Definition at line 65 of file SundanceMeshBase.cpp.

virtual int Sundance::MeshBase::facetLID	(	int	cellDim,
		int	cellLID,
		int	facetDim,
		int	facetIndex,
		int &	facetOrientation
	)			const `[pure virtual]`

Return the LID of a single facet cell (and optionally its orientation) with respect to a relative parent cell.

Parameters:

	cellDim	[in] Dimension of the parent cell whose facets are being obtained.
	cellLID	[in] Local ID of the parent cell whose facets are being obtained
	facetDim	[in] Dimension of the desired facet.
	facetIndex	[in] The relative index into the list of the cell's facets.
	facetOrientation	[out] The orientation of the facet w.r.t the parent cell.

Todo:: Change the facetOrientation argument to be a raw pointer that can be NULL and therefore easily ignored.

Implemented in Sundance::BasicSimplicialMesh, Sundance::HNMesh2D, Sundance::HNMesh3D, Sundance::PeriodicMesh1D, and Sundance::PeriodicSingleCellMesh1D.

Referenced by centroid(), getFacetArray(), outwardNormals(), and tangentsToEdges().

void MeshBase::flushCurvePoints ( ) const [virtual]

detletes all the points and its normals which have been stored

Definition at line 255 of file SundanceMeshBase.cpp.

References curveDerivative_, curveID_to_ArrayIndex_, curveNormal_, curvePoints_, curvePoints_Are_Valid_, and nrCurvesForIntegral_.

void MeshBase::flushSpecialWeights ( ) const [virtual]

deletes all special weights so those have to be recreated

Definition at line 244 of file SundanceMeshBase.cpp.

References dim_, specialWeights_, and validWeights_.

Set< int > MeshBase::getAllLabelsForDimension ( int cellDim ) const [virtual]

Get the list of all labels defined for cells of the given dimension

Reimplemented in Sundance::BasicSimplicialMesh, Sundance::HNMesh2D, Sundance::HNMesh3D, Sundance::PeriodicMesh1D, and Sundance::PeriodicSingleCellMesh1D.

Definition at line 214 of file SundanceMeshBase.cpp.

References label(), numCells(), and Sundance::Set< Key, Compare >::put().

virtual void Sundance::MeshBase::getCellDiameters	(	int	cellDim,
		const Array< int > &	cellLIDs,
		Array< double > &	diameters
	)			const `[inline, virtual]`

Compute the diameters of a batch of cells.

Parameters:

	cellDim	[in] Dimension of the cells whose diameters are to be computed
	cellLIDs	[in] Local IDs of the cells for which diameters are to be computed
	diameters	[out] Array (`size = cellLIDs.size()`) of cell diameters.

Warning! The default implementation returns an empty array of cell diameters! ToDo: Change the default implementation to compute diameters based on calls to the node position accessors. Going through the Mesh interface in that way will be less efficient than a low-level implementation, but would be a reasonable intermediate step for mesh developers.

KL 5 Aug 2007.

Reimplemented in Sundance::BasicSimplicialMesh, Sundance::HNMesh2D, Sundance::HNMesh3D, Sundance::PeriodicMesh1D, and Sundance::PeriodicSingleCellMesh1D.

Definition at line 772 of file SundanceMeshBase.hpp.

virtual void Sundance::MeshBase::getCofacets	(	int	cellDim,
		int	cellLID,
		int	cofacetDim,
		Array< int > &	cofacetLIDs
	)			const `[pure virtual]`

Return an array of the LIDs of all of the co-facets for a given relative cell.

Parameters:

	cellDim	[in] Dimension of the relative cell whose co-facets are being obtained
	cellLID	[in] Local index of the relative cell whose co-facets are being obtained
	cofacetDim	[in] Dimension of the co-facets to get
	cofacetLIDs	[out] Array containing the LIDs of the co-facets for the given relative cell (cellDim,cellLID).

Todo:: Change name to getCofacetArray() to be consistent with getFacetArray()!

Implemented in Sundance::BasicSimplicialMesh, Sundance::HNMesh2D, Sundance::HNMesh3D, Sundance::PeriodicMesh1D, and Sundance::PeriodicSingleCellMesh1D.

void MeshBase::getCurvePoints	(	int	maxCellLID,
		int	curveID,
		Array< Point > &	points,
		Array< Point > &	derivs,
		Array< Point > &	normals
	)			const `[virtual]`

Gets the points, curve derivatives and curve normals for one maxCell needed for curve/surf integral

Definition at line 288 of file SundanceMeshBase.cpp.

References curveDerivative_, curveNormal_, curvePoints_, mapCurveID_to_Index(), nrCurvesForIntegral_, and SUNDANCE_MSG3.

void MeshBase::getFacetArray	(	int	cellDim,
		int	cellLID,
		int	facetDim,
		Array< int > &	facetLIDs,
		Array< int > &	facetOrientations
	)			const

Return an array containing the LIDs of the facets of dimension facetDim of the single relative parent cell (optionally also returning the facet orientations).

Parameters:

	cellDim	[in] Dimension of the parent cell whose facets are being obtained.
	cellLID	[in] Local ID of the parent cell whose facets are being obtained
	facetDim	[in] Dimension of the desired facets
	facetLIDs	[out] On exit this array gives the local facet IDs for the parent cell with size = `nf`, where `nf=numFacets(cellDim,cellLID,facetDim)`.
	facetOrientations	[out] On exist, if `facetDim > 0`, this array gives the integer orientation of the facet with respect to its parent cell (see above definition of "Facet Orientation"). On exist this array will be resized to size = `nf`, where `nf=numFacets(cellDim,cellLID,facetDim)`). If `facetDim==0` this this array argument is ignored!

The default implementation loops over calls to facetLID(). Subclasses can provide a more efficient implementation if desired.

Todo:: Rename to something like getSingleCellFacetLIDs(...).

Todo:: Change the facetOrientation argument to an Array<int>* type so that it can be NULL and therefore ignored (which is a common use case).

Definition at line 154 of file SundanceMeshBase.cpp.

References facetLID(), and numFacets().

virtual void Sundance::MeshBase::getFacetLIDs	(	int	cellDim,
		const Array< int > &	cellLIDs,
		int	facetDim,
		Array< int > &	facetLIDs,
		Array< int > &	facetOrientations
	)			const `[pure virtual]`

Return an array containing the LIDs of facets of dimension facetDim for the given batch of relative parent cells.

Parameters:

	cellDim	[in] Dimension of the relative parent cells whose facets are being obtained
	cellLIDs	[in] Array of LIDs for the relative parent cells
	facetDim	[in] Dimension of the desired facets
	facetLIDs	[out] On exit this array gives the local facet IDs for all of the cells given in cellLIDs in one flat array with size = `cellLIDs.size()nf`, where `nf=numFacets(cellDim,cellLIDs[j],facetDim)`) where `j` can be any index `0 <= j < numCells(cellDim)`. Specifically, the local facet IDs for `cellLIDs[k]`, where `k=0...cellLIDs.size()-1`, is given by `facetLIDs[knf+j]`, where `j=0...nf-1`.
	facetOrientations	[out] On exist, if `facetDim > 0`, this array gives the integer orientation of the facet with respect to its parent cell (see above definition of "Facet Orientation"). Oon exist this array will be resized to size = `cellLIDs.size()nf`, where `nf=numFacets(cellDim,cellLID,facetDim)`). Specifically, the local facet orientation for the cell cellLIDs[k], where `k=0...cellLIDs.size()-1`, is given by `facetOrientations[knf+j]`, where `j=0...nf-1`. If `facetDim==0` then this array is ignored.

Warning! This function will only work for homogeneous cell types!

Todo:: Change the facetOrientation argument to an Array<int>* type so that it can be NULL and therefore ignored (which is a common use case).

Implemented in Sundance::BasicSimplicialMesh, Sundance::HNMesh2D, Sundance::HNMesh3D, Sundance::PeriodicMesh1D, and Sundance::PeriodicSingleCellMesh1D.

virtual void Sundance::MeshBase::getJacobians	(	int	cellDim,
		const Array< int > &	cellLID,
		CellJacobianBatch &	jBatch
	)			const `[inline, virtual]`

Compute (or get) the Jacobians for a batch of cells.

Parameters:

	cellDim	[in] Dimension of the cells whose Jacobians are to be computed
	cellLID	[in] Local IDs of the cells for which Jacobians are to be computed
	jBatch	[out] Batch of cell Jacobians.

Warning! The default implementation returns an empty batch of cell Jacobians!

Todo:: Add a query function to tell if this feature is supported and then add a precondition based on this query function!

Reimplemented in Sundance::BasicSimplicialMesh, Sundance::HNMesh2D, Sundance::HNMesh3D, Sundance::PeriodicMesh1D, and Sundance::PeriodicSingleCellMesh1D.

Definition at line 746 of file SundanceMeshBase.hpp.

void MeshBase::getLabels	(	int	cellDim,
		const Array< int > &	cellLIDs,
		Array< int > &	labels
	)			const

Get the labels for a batch of cells.

Parameters:

	cellDim	[in] Dimension of the parent cell whose facets are being obtained
	cellLIDs	[in] Array of cell LIDs
	labels	[out] On exit, contains an array (`size=cellLIDs.size()`) of the labels for each of the given cells.

Reimplemented in Sundance::BasicSimplicialMesh, Sundance::HNMesh2D, Sundance::HNMesh3D, Sundance::PeriodicMesh1D, and Sundance::PeriodicSingleCellMesh1D.

Definition at line 169 of file SundanceMeshBase.cpp.

References label().

void MeshBase::getLIDsForLabel	(	int	cellDim,
		int	label,
		Array< int > &	cellLIDs
	)			const `[virtual]`

Get the cells associated with a specified label. The array cellLID will be filled with those cells of dimension cellDim having the given label.

Reimplemented in Sundance::BasicSimplicialMesh, Sundance::HNMesh2D, Sundance::HNMesh3D, Sundance::PeriodicMesh1D, and Sundance::PeriodicSingleCellMesh1D.

Definition at line 201 of file SundanceMeshBase.cpp.

References label(), and numCells().

void MeshBase::getMaxCofacetLIDs	(	const Array< int > &	cellLIDs,
		MaximalCofacetBatch &	cofacets
	)			const `[virtual]`

Get the LIDs of the maximal cofacets for a batch of codimension-one cells. The default implementation simply loops over the cells in the cellLID array, taking no advantage of any internal data structures.

Parameters:

	cellLIDs	[in] array of LIDs of the cells whose cofacets are being obtained
	cofacets	[out]
	facetIndex	[out] index of each calling cell into the list of its maximal cofacet's facets

Reimplemented in Sundance::HNMesh2D, Sundance::HNMesh3D, Sundance::PeriodicMesh1D, and Sundance::PeriodicSingleCellMesh1D.

Definition at line 177 of file SundanceMeshBase.cpp.

References Sundance::MaximalCofacetBatch::addSingleCofacet(), Sundance::MaximalCofacetBatch::addTwoCofacets(), maxCofacetLID(), numMaxCofacets(), Sundance::MaximalCofacetBatch::reset(), and spatialDim().

void MeshBase::getSpecialWeight	(	int	dim,
		int	cellLID,
		Array< double > &	w
	)			const `[virtual]`

Returns the special weights

Definition at line 239 of file SundanceMeshBase.cpp.

References specialWeights_.

bool MeshBase::hasCurvePoints	(	int	maxCellLID,
		int	curveID
	)			const `[virtual]`

verifies if the specified maxCell has already precalculated quadrature point for one curve

Definition at line 269 of file SundanceMeshBase.cpp.

References curvePoints_, and mapCurveID_to_Index().

virtual bool Sundance::MeshBase::hasGID	(	int	cellDim,
		int	cellGID
	)			const `[pure virtual]`

Determine whether a given cell GID exists on this processor.

Implemented in Sundance::BasicSimplicialMesh, Sundance::HNMesh2D, Sundance::HNMesh3D, Sundance::PeriodicMesh1D, and Sundance::PeriodicSingleCellMesh1D.

virtual bool Sundance::MeshBase::hasIntermediateGIDs ( int cellDim ) const [pure virtual]

Return if cells of dimension cellDim have been assigned global IDs or not.

Parameters:

cellDim

[in] Dimension of the cell

Implemented in Sundance::BasicSimplicialMesh, Sundance::HNMesh2D, Sundance::HNMesh3D, Sundance::PeriodicMesh1D, and Sundance::PeriodicSingleCellMesh1D.

bool MeshBase::hasSpecialWeight	(	int	dim,
		int	cellLID
	)			const `[virtual]`

verifies if the specified cell with the given dimension has special weights

Definition at line 228 of file SundanceMeshBase.cpp.

References specialWeights_.

virtual int Sundance::MeshBase::indexInParent ( int maxCellLID ) const [inline, virtual]

Returns the index in the parent maxdim Cell of the refinement tree

Parameters:

maxCellLID

[in] the LID of the cell

Reimplemented in Sundance::HNMesh2D, and Sundance::HNMesh3D.

Definition at line 940 of file SundanceMeshBase.hpp.

virtual bool Sundance::MeshBase::IsCurvePointsValid ( ) const [inline, virtual]

Definition at line 988 of file SundanceMeshBase.hpp.

References curvePoints_Are_Valid_.

virtual bool Sundance::MeshBase::isElementHangingNode	(	int	cellDim,
		int	cellLID
	)			const `[inline, virtual]`

Function returns true if the specified element is a "hanging" element false otherwise

Parameters:

	cellDim	[in] should be between 0 , D-1
	cellLID	[in] the local ID of the element

Reimplemented in Sundance::HNMesh2D, and Sundance::HNMesh3D.

Definition at line 936 of file SundanceMeshBase.hpp.

virtual bool Sundance::MeshBase::IsSpecialWeightValid ( ) const [inline, virtual]

returns the status of the special weights if they are valid
These weights are usually computed for one setting of the curve (Adaptive Cell Integration)

Definition at line 962 of file SundanceMeshBase.hpp.

References validWeights_.

virtual int Sundance::MeshBase::label	(	int	cellDim,
		int	cellLID
	)			const `[pure virtual]`

Get the label of the given cell.

Todo:: Change to getLabel(...)?

Implemented in Sundance::BasicSimplicialMesh, Sundance::HNMesh2D, Sundance::HNMesh3D, Sundance::PeriodicMesh1D, and Sundance::PeriodicSingleCellMesh1D.

Referenced by getAllLabelsForDimension(), getLabels(), and getLIDsForLabel().

int MeshBase::mapCurveID_to_Index ( int curveID ) const [private, virtual]

Definition at line 300 of file SundanceMeshBase.cpp.

References Sundance::Map< Key, Value, Compare >::containsKey(), curveDerivative_, curveID_to_ArrayIndex_, curveNormal_, curvePoints_, Sundance::Map< Key, Value, Compare >::get(), nrCurvesForIntegral_, Sundance::Map< Key, Value, Compare >::put(), and SUNDANCE_MSG3.

Referenced by getCurvePoints(), hasCurvePoints(), and setCurvePoints().

virtual int Sundance::MeshBase::mapGIDToLID	(	int	cellDim,
		int	cellGID
	)			const `[pure virtual]`

Find the LID of a cell given its GID.

Parameters:

	cellDim	[in] Dimension of the cell
	cellGID	[in] Global ID of the cell

Preconditions:

hasGID(cellDim,cellGID)==true

Postconditions:

0 <= returnVal < numCells(cellDim)

Implemented in Sundance::BasicSimplicialMesh, Sundance::HNMesh2D, Sundance::HNMesh3D, Sundance::PeriodicMesh1D, and Sundance::PeriodicSingleCellMesh1D.

virtual int Sundance::MeshBase::mapLIDToGID	(	int	cellDim,
		int	cellLID
	)			const `[pure virtual]`

Find the global ID of a cell given its LID.

Parameters:

	cellDim	[in] Dimension of the cell
	cellLID	[in] Local ID of the cell

Postconditions:

returnVal >= 0

Implemented in Sundance::BasicSimplicialMesh, Sundance::HNMesh2D, Sundance::HNMesh3D, Sundance::PeriodicMesh1D, and Sundance::PeriodicSingleCellMesh1D.

virtual int Sundance::MeshBase::maxChildren ( ) const [inline, virtual]

How many children has a refined element.
This function provides information of either we have bi or trisection

Reimplemented in Sundance::HNMesh2D, and Sundance::HNMesh3D.

Definition at line 944 of file SundanceMeshBase.hpp.

virtual int Sundance::MeshBase::maxCofacetLID	(	int	cellDim,
		int	cellLID,
		int	cofacetIndex,
		int &	facetIndex
	)			const `[pure virtual]`

Return the LID of a maximal co-facet of a cell.

Parameters:

	cellDim	[in] Dimension of the cell whose co-facets are being obtained
	cellLID	[in] Local ID of the cell whose co-facets are being obtained
	cofacetIndex	[in] Index into the list of the cell's co-facets.
	facetIndex	[out] Returns the local index into the facet array for the relative cell (cellDim,cellLID) with respect to the maximal co-facet. In other words `cellLID==facetLID(spatialDim(),returnVal,cellDim,facetIndex)`.

Preconditions:

0 <= cellDim < spatialDim()

Returns:: The LID of the requested maximal co-facet.

Todo:: Make the facetIndex an int* argument and give it a default value of NUL so that it can be easily ignored!

Implemented in Sundance::BasicSimplicialMesh, Sundance::HNMesh2D, Sundance::HNMesh3D, Sundance::PeriodicMesh1D, and Sundance::PeriodicSingleCellMesh1D.

Referenced by getMaxCofacetLIDs(), and outwardNormals().

const MeshEntityOrder& Sundance::MeshBase::meshOrder ( ) const [inline]

Get the ordering convention used by this mesh.

Definition at line 403 of file SundanceMeshBase.hpp.

References order_.

virtual Point Sundance::MeshBase::nodePosition ( int vertexLID ) const [pure virtual]

Return the position of a local vertex.

Parameters:

vertexLID

[in] The LID of the vertex.

Preconditions:

0 <= vertexLID < this->numCells(0)

Todo:: Change the name of this function to getVertexPosition(...).

Implemented in Sundance::BasicSimplicialMesh, Sundance::HNMesh2D, Sundance::HNMesh3D, Sundance::PeriodicMesh1D, and Sundance::PeriodicSingleCellMesh1D.

Referenced by centroid(), outwardNormals(), and tangentsToEdges().

virtual const double* Sundance::MeshBase::nodePositionView ( int vertexLID ) const [pure virtual]

Return a const view into an raw array for the position of a local vertex.

Parameters:

vertexLID

[in] The LID of the vertex

Preconditions:

0 <= vertexLID < this->numCells(0)

Returns:: a raw pointer into an array of doubles of length spatialDim.

Todo:: Return this array as a Teuchos::ArrayView<double> object which will have the dimension embedded in it and will have full range checking!

Todo:: Change this function name to getVertexPositionView().

Implemented in Sundance::BasicSimplicialMesh, Sundance::HNMesh2D, Sundance::HNMesh3D, Sundance::PeriodicMesh1D, and Sundance::PeriodicSingleCellMesh1D.

virtual int Sundance::MeshBase::numCells ( int cellDim ) const [pure virtual]

Get the number of local cells having dimension cellDim.

Todo:: Change this to numLocalCells(cellDim).

Implemented in Sundance::BasicSimplicialMesh, Sundance::HNMesh2D, Sundance::HNMesh3D, Sundance::PeriodicMesh1D, and Sundance::PeriodicSingleCellMesh1D.

Referenced by Sundance::CellReordererImplemBase::end(), getAllLabelsForDimension(), and getLIDsForLabel().

virtual int Sundance::MeshBase::numFacets	(	int	cellDim,
		int	cellLID,
		int	facetDim
	)			const `[pure virtual]`

Return the number of facets of the given relative cell.

Parameters:

	cellDim	[in] The dimension of the relative cell
	cellLID	[in] The LID of the relative cell
	facetDim	[in] The dimension of the facets for the relative cell

Postconditions:

returnVal >= 2: Every cell has two or more facets of a given dimension.

Implemented in Sundance::BasicSimplicialMesh, Sundance::HNMesh2D, Sundance::HNMesh3D, Sundance::PeriodicMesh1D, and Sundance::PeriodicSingleCellMesh1D.

Referenced by centroid(), and getFacetArray().

virtual int Sundance::MeshBase::numMaxCofacets	(	int	cellDim,
		int	cellLID
	)			const `[pure virtual]`

Return the number of maximal co-facets of the given cell.

Preconditions:

0 <= cellDim < spatialDim()

Note that if cellDim==spatialDim()-1 and returnVal==1 then this cell must be a boundary cell (i.e. a boundary face in 3D, a boundary edge in 1D, or a boundary node in 1D)!

Implemented in Sundance::BasicSimplicialMesh, Sundance::HNMesh2D, Sundance::HNMesh3D, Sundance::PeriodicMesh1D, and Sundance::PeriodicSingleCellMesh1D.

Referenced by getMaxCofacetLIDs(), and outwardNormals().

void MeshBase::outwardNormals	(	const Array< int > &	cellLIDs,
		Array< Point > &	outwardNormals
	)			const `[virtual]`

Get the outward normals for the batch of cells of dimension spatialDim()-1. If any cell in the batch is not on the boundary, an exception is thrown.

Parameters:

	cellLIDs	[in] LIDs for the cells whose normals are to be computed.
	outwardNormals	[out] Outward normal unit vectors for each cell in the batch.

Definition at line 84 of file SundanceMeshBase.cpp.

References centroid(), Sundance::cross(), facetLID(), maxCofacetLID(), nodePosition(), numMaxCofacets(), and spatialDim().

virtual int Sundance::MeshBase::ownerProcID	(	int	cellDim,
		int	cellLID
	)			const `[pure virtual]`

Return the rank of the processor that owns the given cell.

If returnVal==comm().getRank() then this cell is owned by this process.

Implemented in Sundance::BasicSimplicialMesh, Sundance::HNMesh2D, Sundance::HNMesh3D, Sundance::PeriodicMesh1D, and Sundance::PeriodicSingleCellMesh1D.

virtual void Sundance::MeshBase::pushForward	(	int	cellDim,
		const Array< int > &	cellLIDs,
		const Array< Point > &	refPts,
		Array< Point > &	physPts
	)			const `[inline, virtual]`

Map points from a reference cell to physical points for a batch of cells.

Parameters:

	cellDim	[in] Dimension of the cells
	cellLIDs	[in] Local IDs of a batch of cells
	refPts	[in] Array of points on the single reference cell with respect to the reference cell's coordinate system. Note that the interpretation of these reference points is strictly determined by the coordinate system of the cell type `cellType(cellDim)` and must be clearly defined by this interface.
	physPts	[out] Array (`size = cellLIDs.size()refPts.size()`) of the physical points given in a flat array for the batch of cells. Specifically, the physical points for each cell `cellLIDs[k]`, for `k=0...cellLIDs.size()-1`, is given by `physPts[knrp+j]`, for `j=0...nrp-1` and `nrp=refPts.size()`.

Warning! The default implementation returns an empty array of physical points!

Todo:: Add a query function to tell if this feature is supported and then add a precondition based on this query function!

Reimplemented in Sundance::BasicSimplicialMesh, Sundance::HNMesh2D, Sundance::HNMesh3D, Sundance::PeriodicMesh1D, and Sundance::PeriodicSingleCellMesh1D.

Definition at line 835 of file SundanceMeshBase.hpp.

const CellReordererImplemBase* Sundance::MeshBase::reorderer ( ) const [inline]

Get the reordering strategy to be used with this mesh.

Definition at line 919 of file SundanceMeshBase.hpp.

References reorderer_.

virtual void Sundance::MeshBase::returnParentFacets	(	int	childCellLID,
		int	dimFacets,
		Array< int > &	facetsLIDs,
		int &	parentCellLIDs
	)			const `[inline, virtual]`

Function returns the facets of the parent cell (needed for HN treatment)

Parameters:

	childCellLID	[in] the LID of the maxdim cell, whos parents facets we want
	dimFacets	[in] the dimension of the facets which we want to have
	facetsLIDs	[out] the LID of the parents facets (all) in the defined order
	parentCellLIDs	[out] the maxdim parent cell LID

Reimplemented in Sundance::HNMesh2D, and Sundance::HNMesh3D.

Definition at line 951 of file SundanceMeshBase.hpp.

void MeshBase::setCurvePoints	(	int	maxCellLID,
		int	curveID,
		Array< Point > &	points,
		Array< Point > &	derivs,
		Array< Point > &	normals
	)			const `[virtual]`

Sets the points, curve derivatives and curve normals for one maxCell needed for curve/surf integral

Definition at line 276 of file SundanceMeshBase.cpp.

References curveDerivative_, curveNormal_, curvePoints_, mapCurveID_to_Index(), nrCurvesForIntegral_, and SUNDANCE_MSG3.

virtual void Sundance::MeshBase::setCurvePointsValid ( bool val ) const [inline, virtual]

Definition at line 991 of file SundanceMeshBase.hpp.

References curvePoints_Are_Valid_.

virtual void Sundance::MeshBase::setLabel	(	int	cellDim,
		int	cellLID,
		int	label
	)			`[pure virtual]`

Set the label for the given cell.

Todo:: Move this out of this base interface and into a mesh loading interface?

Implemented in Sundance::BasicSimplicialMesh, Sundance::HNMesh2D, Sundance::HNMesh3D, Sundance::PeriodicMesh1D, and Sundance::PeriodicSingleCellMesh1D.

void Sundance::MeshBase::setReorderer ( const CellReorderer & reorderer ) [inline]

Set the reordering strategy to be used with this mesh.

Definition at line 915 of file SundanceMeshBase.hpp.

References Sundance::CellReorderer::createInstance(), and reorderer_.

void MeshBase::setSpecialWeight	(	int	dim,
		int	cellLID,
		Array< double > &	w
	)			const `[virtual]`

Sets the special weights

Definition at line 235 of file SundanceMeshBase.cpp.

References specialWeights_.

virtual void Sundance::MeshBase::setSpecialWeightValid ( bool val ) const [inline, virtual]

specifies if the special weights are valid
if this is false then usually the special weights have to be recomputed

Definition at line 966 of file SundanceMeshBase.hpp.

References validWeights_.

int Sundance::MeshBase::spatialDim ( ) const [inline]

Get the spatial dimension of the mesh.

Postconditions:

0 < returnVal <= 3

Definition at line 411 of file SundanceMeshBase.hpp.

References dim_.

static bool& Sundance::MeshBase::staggerOutput ( ) [inline, static]

Set whether to stagger output in parallel. Set to true for readable output in parallel debugging sessions.

This should be normally, as it causes one synchronization point per process.

Todo:: Get rid of this once we update to use Teuchos::FancyOStream since parallel outputting will be done in a readable way automatically!

Definition at line 1022 of file SundanceMeshBase.hpp.

Referenced by Sundance::BasicSimplicialMesh::assignIntermediateCellGIDs(), and Sundance::BasicSimplicialMesh::resolveEdgeOwnership().

void MeshBase::tangentsToEdges	(	const Array< int > &	cellLIDs,
		Array< Point > &	tangenVectors
	)			const `[virtual]`

Get tangent vectors for a batch of edges

Parameters:

	cellLIDs	[in] LIDs for the cells whose tangents are to be computed.
	tangentVectors	[out] Unit tangents for each cell

Definition at line 132 of file SundanceMeshBase.cpp.

References facetLID(), nodePosition(), and spatialDim().

Member Data Documentation

MPIComm Sundance::MeshBase::comm_ [private]

Definition at line 1030 of file SundanceMeshBase.hpp.

Referenced by comm().

Array< Sundance::Map< int , Array<Point> > > Sundance::MeshBase::curveDerivative_ [mutable, private]

store directional derivative informations to calculate the curve integral

Definition at line 1056 of file SundanceMeshBase.hpp.

Referenced by flushCurvePoints(), getCurvePoints(), mapCurveID_to_Index(), MeshBase(), and setCurvePoints().

Sundance::Map< int , int > Sundance::MeshBase::curveID_to_ArrayIndex_ [mutable, private]

map the curve ID to index in the previous arrays

Definition at line 1063 of file SundanceMeshBase.hpp.

Referenced by flushCurvePoints(), and mapCurveID_to_Index().

Array< Sundance::Map< int , Array<Point> > > Sundance::MeshBase::curveNormal_ [mutable, private]

store normal directional used in the curve or in the surf integral
in case of the surf integral it is the cross product from the integral

Definition at line 1060 of file SundanceMeshBase.hpp.

Referenced by flushCurvePoints(), getCurvePoints(), mapCurveID_to_Index(), MeshBase(), and setCurvePoints().

Array< Sundance::Map< int , Array<Point> > > Sundance::MeshBase::curvePoints_ [mutable, private]

store intersection informations to calculate the curve integral

Definition at line 1053 of file SundanceMeshBase.hpp.

Referenced by flushCurvePoints(), getCurvePoints(), hasCurvePoints(), mapCurveID_to_Index(), MeshBase(), and setCurvePoints().

bool Sundance::MeshBase::curvePoints_Are_Valid_ [mutable, private]

true if the curve did not moved, false if those points are not reusable

Definition at line 1047 of file SundanceMeshBase.hpp.

Referenced by flushCurvePoints(), IsCurvePointsValid(), and setCurvePointsValid().

int Sundance::MeshBase::dim_ [private]

Definition at line 1028 of file SundanceMeshBase.hpp.

Referenced by flushSpecialWeights(), MeshBase(), and spatialDim().

int Sundance::MeshBase::nrCurvesForIntegral_ [mutable, private]

how many curves are participating in curve integrals

Definition at line 1050 of file SundanceMeshBase.hpp.

Referenced by flushCurvePoints(), getCurvePoints(), mapCurveID_to_Index(), and setCurvePoints().

MeshEntityOrder Sundance::MeshBase::order_ [private]

Definition at line 1032 of file SundanceMeshBase.hpp.

Referenced by meshOrder().

RCP<CellReordererImplemBase> Sundance::MeshBase::reorderer_ [private]

Definition at line 1034 of file SundanceMeshBase.hpp.

Referenced by reorderer(), and setReorderer().

Array< Sundance::Map< int , Array<double> > > Sundance::MeshBase::specialWeights_ [mutable, private]

Object to store the special weights for integration

Definition at line 1042 of file SundanceMeshBase.hpp.

Referenced by flushSpecialWeights(), getSpecialWeight(), hasSpecialWeight(), MeshBase(), and setSpecialWeight().

bool Sundance::MeshBase::validWeights_ [mutable, private]

flag to indicate if the weights stored are valid

Definition at line 1039 of file SundanceMeshBase.hpp.

Referenced by flushSpecialWeights(), IsSpecialWeightValid(), and setSpecialWeightValid().


Public Member Functions
Constructors/Destructor

	MeshBase (int dim, const MPIComm &comm, const MeshEntityOrder &meshOrder)

virtual	~MeshBase ()

Topological Information

const MeshEntityOrder &	meshOrder () const
	Get the ordering convention used by this mesh.
int	spatialDim () const
	Get the spatial dimension of the mesh.
virtual int	numCells (int cellDim) const =0
	Get the number of local cells having dimension cellDim.
virtual int	numFacets (int cellDim, int cellLID, int facetDim) const =0
	Return the number of facets of the given relative cell.
virtual int	facetLID (int cellDim, int cellLID, int facetDim, int facetIndex, int &facetOrientation) const =0
	Return the LID of a single facet cell (and optionally its orientation) with respect to a relative parent cell.
virtual void	getFacetLIDs (int cellDim, const Array< int > &cellLIDs, int facetDim, Array< int > &facetLIDs, Array< int > &facetOrientations) const =0
	Return an array containing the LIDs of facets of dimension facetDim for the given batch of relative parent cells.
void	getFacetArray (int cellDim, int cellLID, int facetDim, Array< int > &facetLIDs, Array< int > &facetOrientations) const
	Return an array containing the LIDs of the facets of dimension facetDim of the single relative parent cell (optionally also returning the facet orientations).
virtual const int *	elemZeroFacetView (int maxCellLID) const
	Return a view of an array of LIDs for a maximum-dimensional cell's zero-dimensional facets (i.e. vertexes).
virtual int	numMaxCofacets (int cellDim, int cellLID) const =0
	Return the number of maximal co-facets of the given cell.
virtual int	maxCofacetLID (int cellDim, int cellLID, int cofacetIndex, int &facetIndex) const =0
	Return the LID of a maximal co-facet of a cell.
virtual void	getMaxCofacetLIDs (const Array< int > &cellLIDs, MaximalCofacetBatch &cofacets) const
virtual void	getCofacets (int cellDim, int cellLID, int cofacetDim, Array< int > &cofacetLIDs) const =0
	Return an array of the LIDs of all of the co-facets for a given relative cell.
virtual CellType	cellType (int cellDim) const =0
	Get the cell type of the given cell dimension.
virtual int	label (int cellDim, int cellLID) const =0
	Get the label of the given cell.
void	getLabels (int cellDim, const Array< int > &cellLIDs, Array< int > &labels) const
	Get the labels for a batch of cells.
virtual void	setLabel (int cellDim, int cellLID, int label)=0
	Set the label for the given cell.
virtual Set< int >	getAllLabelsForDimension (int cellDim) const
virtual void	getLIDsForLabel (int cellDim, int label, Array< int > &cellLIDs) const
Geometric Information

virtual Point	nodePosition (int vertexLID) const =0
	Return the position of a local vertex.
virtual const double *	nodePositionView (int vertexLID) const =0
	Return a const view into an raw array for the position of a local vertex.
virtual Point	centroid (int cellDim, int cellLID) const
	Return the centroid of a cell.
virtual void	getJacobians (int cellDim, const Array< int > &cellLID, CellJacobianBatch &jBatch) const
	Compute (or get) the Jacobians for a batch of cells.
virtual void	getCellDiameters (int cellDim, const Array< int > &cellLIDs, Array< double > &diameters) const
	Compute the diameters of a batch of cells.
virtual void	outwardNormals (const Array< int > &cellLIDs, Array< Point > &outwardNormals) const
virtual void	tangentsToEdges (const Array< int > &cellLIDs, Array< Point > &tangenVectors) const
virtual void	pushForward (int cellDim, const Array< int > &cellLIDs, const Array< Point > &refPts, Array< Point > &physPts) const
	Map points from a reference cell to physical points for a batch of cells.
Parallel Information

const MPIComm &	comm () const
	Return the MPI communicator over which this mesh is distributed.
virtual int	ownerProcID (int cellDim, int cellLID) const =0
	Return the rank of the processor that owns the given cell.
virtual bool	hasGID (int cellDim, int cellGID) const =0
	Determine whether a given cell GID exists on this processor.
virtual int	mapGIDToLID (int cellDim, int cellGID) const =0
	Find the LID of a cell given its GID.
virtual int	mapLIDToGID (int cellDim, int cellLID) const =0
	Find the global ID of a cell given its LID.
virtual bool	hasIntermediateGIDs (int cellDim) const =0
	Return if cells of dimension cellDim have been assigned global IDs or not.
virtual void	assignIntermediateCellGIDs (int cellDim)=0
	Assign global IDs to cells of dimension cellDim.
Reordering

void	setReorderer (const CellReorderer &reorderer)
	Set the reordering strategy to be used with this mesh.
const CellReordererImplemBase *	reorderer () const
	Get the reordering strategy to be used with this mesh.
Functions for Mesh with hanging nodes

virtual bool	allowsHangingHodes () const
virtual bool	isElementHangingNode (int cellDim, int cellLID) const
virtual int	indexInParent (int maxCellLID) const
virtual int	maxChildren () const
virtual void	returnParentFacets (int childCellLID, int dimFacets, Array< int > &facetsLIDs, int &parentCellLIDs) const
Store special weights in the mesh (for Adaptive Cell Integration)

virtual bool	IsSpecialWeightValid () const
virtual void	setSpecialWeightValid (bool val) const
virtual void	flushSpecialWeights () const
virtual bool	hasSpecialWeight (int dim, int cellLID) const
virtual void	setSpecialWeight (int dim, int cellLID, Array< double > &w) const
virtual void	getSpecialWeight (int dim, int cellLID, Array< double > &w) const
Static Public Member Functions
Output

static bool &	staggerOutput ()
	Set whether to stagger output in parallel. Set to true for readable output in parallel debugging sessions.
Private Attributes
int	dim_
MPIComm	comm_
MeshEntityOrder	order_
RCP< CellReordererImplemBase >	reorderer_
bool	validWeights_
Array< Sundance::Map< int, Array< double > > >	specialWeights_
bool	curvePoints_Are_Valid_
int	nrCurvesForIntegral_
Array< Sundance::Map< int, Array< Point > > >	curvePoints_
Array< Sundance::Map< int, Array< Point > > >	curveDerivative_
Array< Sundance::Map< int, Array< Point > > >	curveNormal_
Sundance::Map< int, int >	curveID_to_ArrayIndex_
Store the intersection/quadrature points for the curve/surf integral <br>
for a curve or surf integral we need some quadrature points along the curve in one curve These
virtual bool	IsCurvePointsValid () const
virtual void	setCurvePointsValid (bool val) const
virtual void	flushCurvePoints () const
virtual bool	hasCurvePoints (int maxCellLID, int curveID) const
virtual void	setCurvePoints (int maxCellLID, int curveID, Array< Point > &points, Array< Point > &derivs, Array< Point > &normals) const
virtual void	getCurvePoints (int maxCellLID, int curveID, Array< Point > &points, Array< Point > &derivs, Array< Point > &normals) const
virtual int	mapCurveID_to_Index (int curveID) const
