Sundance::InhomogeneousDOFMapHN Class Reference

A MixedDOFMapHN is a DOF map for the case where every function is defined on every cell in the mesh, but where functions may have different bases. More...

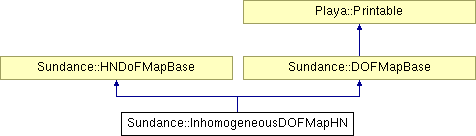

Inheritance diagram for Sundance::InhomogeneousDOFMapHN:

List of all members.

Public Member Functions
	InhomogeneousDOFMapHN (const Mesh &mesh, const Array< RCP< BasisDOFTopologyBase > > &basis, const Array< Map< Set< int >, CellFilter > > &funcSetToDomainMap, int setupVerb)
virtual	~InhomogeneousDOFMapHN ()
RCP< const MapStructure >	getDOFsForCellBatch (int cellDim, const Array< int > &cellLID, const Set< int > &requestedFuncSet, Array< Array< int > > &dofs, Array< int > &nNodes, int verbosity) const
	Return the global DOFs for a batch of cells for a given set of functions on those cells.
void	getTrafoMatrixForCell (int cellLID, int funcID, int &trafoMatrixSize, bool &doTransform, Array< double > &transfMatrix) const
	Returns the.
void	getTrafoMatrixForFacet (int cellDim, int cellLID, int facetIndex, int funcID, int &trafoMatrixSize, bool &doTransform, Array< double > &transfMatrix) const
	Function to apply transformation for facets.
RCP< const Set< int > >	allowedFuncsOnCellBatch (int cellDim, const Array< int > &cellLID) const
	Return the set of a function IDs for a batch of cells for which DOFs can be obtained.
void	getDOFsForHNCell (int cellDim, int cellLID, int funcID, Array< int > &dofs, Array< double > &coefs) const
	See subclass for docu We can be sure that this is used only for nodal data (for VTK plotting) This is implemented only for Nodal data call !!!
RCP< const MapStructure >	mapStruct () const
int	chunkForFuncID (int funcID) const
int	indexForFuncID (int funcID) const
int	nFuncs (int basisChunk) const
int	nBasisChunks () const
const RCP< BasisDOFTopologyBase > &	basis (int basisChunk) const
const Array< int > &	funcID (int basisChunk) const
int	getfuncID (int basisChunk, int funcNr) const
	Return the function ID for one chunk and index, same as the previous but returns one value.
const Array< CellFilter > &	funcDomains () const
	Return an array of cell filters that gives, for each function ID, the cells that the function lives on.
virtual void	print (std::ostream &os) const
	Print the DOF map.
Private Member Functions
int	getInitialDOFForCell (int cellDim, int cellLID, int funcID) const
int *	getInitialDOFPtrForCell (int cellDim, int cellLID, int funcID)
const int *	getInitialDOFPtrForCell (int cellDim, int cellLID, int funcID) const
void	allocate (const Mesh &mesh)
void	buildMaximalDofTable ()
bool	hasBeenAssigned (int cellDim, int cellLID) const
void	markAsAssigned (int cellDim, int cellLID)
void	initMap ()
void	setDOFs (int basisChunk, int cellDim, int cellLID, int &nextDOF, bool isRemote=false)
void	shareDOFs (int cellDim, const Array< Array< int > > &outgoingCellRequests)
void	computeOffsets (int dim, int localCount)
Static Private Member Functions
static int	uninitializedVal ()
Private Attributes
int	dim_
	spatial dimension
Array< Array< Array< Array < int > > > >	dofs_
	Tables of DOFs, indexed by dimension and chunk number.
Array< Array< Array< short signed int > > >	funcDefined_
	if one function is defined on this element then is > 0 , else the function is not defined on this element = funcDefined_[cellDim][funcID][cellLID]
Array< Array< Array< int > > >	maximalDofs_
	DOFs for maximal cells, indexed by the cell LID this contains all the DoF of one maxDimCell = maximalDofs_[LID][funcID][DoFIndex];.
bool	haveMaximalDofs_
	whether maximal DOFs have been tabulated
Array< Array< Array< Array < Array< int > > > > >	localNodePtrs_
	localNodePtrs_[basisChunk][cellDim][facetDim][facetNumber][nodeNumber]
Array< CellFilter >	maxSubdomains_
	the domains where each cell filter (as it is in the input) is defined on the maxCells
Array< CellFilter >	funcDomains_
	the domains where each function(input) is defined on the maxCells
Set< int >	allFuncs_
	set which contains all the functions
Array< Set< int > >	elemFuncSetsDomain_
	here we store all combinations of functions which can appear for maxcells in the input parameter used only in the setup face
Array< Set< int > >	elemFuncSets_
	store all the combination of functions
Array< int >	funcSetCellCount_
	how many cells has one combination of "elemFuncSets_"
Array< int >	maxCellFuncSetsIndex_
	for each maxcell store the index in the "elemFuncSets_" , to store the combination of functions
int	nPoints_
	Nr of points, needed only by plotting.
int	nrAllFuncs_
	total number of functions
Array< bool >	hasCellHanging_
	Is true if the cell has hanging node.
Array< Array< bool > >	isElementHanging_
	Flag per element showing if the element is a hanging element.
Sundance::Map< int, Array< int > >	HN_To_globalFacetsLID_
	store the facetLIDs of the points [nPoints*b + facetID]
Sundance::Map< int, Array< int > >	HN_To_globalFacetsDim_
	store the facetDim of the points [nPoints*b + facetID]
Sundance::Map< int, Array < double > >	HN_To_coeffs_
	store the coefs [nPoints*b + facetID]
Sundance::Map< int, Array< int > >	maxCellLIDwithHN_to_TrafoMatrix_
	Maps one maxCell LID to one transformation matrix, only maxDim elements and basisChunck ID with hanging nodes should have transformation matrix [maxCellLID].get -> [basisChunckID][] is the index of trafo matrix.
MatrixStore	matrixStore_
	The object to store all the transformation matrixes.
Array< RCP< BasisFamilyBase > >	basis_
	The basis for the transformation.
Array< Array< int > >	nNodesPerCell_
	The number of nodes per cell, for each basis function type, not including the nodes of the facets of the cell.
Array< Array< int > >	nDofsPerCell_
	The number of DOFs per cell, for each basis function type, not including the DOFs of the facets of the cell.
Array< Array< int > >	totalNNodesPerCell_
	The number of nodes per cell, for each basis function type, including the nodes of the facets of the cell.
Array< int >	cellHasAnyDOFs_
	Indicates whether the cells of each dimension have any DOFs in this map, for any chunk.
Array< Array< int > >	numFacets_
	number of facets of dimension facetDim for cells of dimension cellDim.
Array< Array< int > >	originalFacetOrientation_
	Orientation of each edge or face as seen by the maximal cell from which its DOFs were originally assigned.
Array< Array< int > >	hasBeenAssigned_
RCP< const MapStructure >	structure_
Array< int >	nFuncs_

---

Detailed Description

A MixedDOFMapHN is a DOF map for the case where every function is defined on every cell in the mesh, but where functions may have different bases.

MixedDOFMapHN is defined on meshes with hanging nodes, it builds the restriction matrix where it is needed.

Definition at line 57 of file SundanceInhomogeneousDOFMapHN.hpp.

---

Constructor & Destructor Documentation

InhomogeneousDOFMapHN::InhomogeneousDOFMapHN	(	const Mesh &	mesh,
		const Array< RCP< BasisDOFTopologyBase > > &	basis,
		const Array< Map< Set< int >, CellFilter > > &	funcSetToDomainMap,
		int	setupVerb
	)

for each cell store the index in the set array

Definition at line 59 of file SundanceInhomogeneousDOFMapHN.cpp.

References allFuncs_, allocate(), basis(), basis_, Sundance::CellSet::begin(), buildMaximalDofTable(), Sundance::Map< Key, Value, Compare >::containsKey(), dim_, elemFuncSets_, elemFuncSetsDomain_, Sundance::CellSet::end(), funcDomains_, funcSetCellCount_, Sundance::Map< Key, Value, Compare >::get(), initMap(), matrixStore_, maxCellFuncSetsIndex_, maxSubdomains_, Sundance::Set< Key, Compare >::merge(), mixedHNDOFCtorTimer(), nFuncs_, nPoints_, nrAllFuncs_, Sundance::Mesh::numCells(), Sundance::Map< Key, Value, Compare >::put(), Sundance::Set< Key, Compare >::size(), structure_, SUNDANCE_MSG1, and SUNDANCE_MSG2.

virtual Sundance::InhomogeneousDOFMapHN::~InhomogeneousDOFMapHN

(

)

[inline, virtual]

Definition at line 67 of file SundanceInhomogeneousDOFMapHN.hpp.

---

Member Function Documentation

void InhomogeneousDOFMapHN::allocate

(

const Mesh &

mesh

)

[private]

Definition at line 226 of file SundanceInhomogeneousDOFMapHN.cpp.

References Sundance::Mesh::assignIntermediateCellGIDs(), basis(), cellHasAnyDOFs_, Sundance::Mesh::cellType(), dim_, dofs_, funcDefined_, hasBeenAssigned_, hasCellHanging_, isElementHanging_, localNodePtrs_, maximalDofs_, nBasisChunks(), nDofsPerCell_, nNodesPerCell_, nrAllFuncs_, Sundance::Mesh::numCells(), Sundance::Mesh::numFacets(), numFacets_, originalFacetOrientation_, Sundance::DOFMapBase::setupVerb(), Sundance::Mesh::spatialDim(), SUNDANCE_MSG1, SUNDANCE_MSG2, SUNDANCE_MSG3, and totalNNodesPerCell_.

Referenced by InhomogeneousDOFMapHN().

RCP< const Set< int > > InhomogeneousDOFMapHN::allowedFuncsOnCellBatch	(	int	cellDim,
		const Array< int > &	cellLID
	)			const [virtual]

Return the set of a function IDs for a batch of cells for which DOFs can be obtained.

Implements Sundance::DOFMapBase.

Definition at line 1496 of file SundanceInhomogeneousDOFMapHN.cpp.

References dim_, elemFuncSets_, Sundance::Set< Key, Compare >::intersection(), maxCellFuncSetsIndex_, Sundance::Mesh::maxCofacetLID(), Sundance::Set< Key, Compare >::merge(), Sundance::DOFMapBase::mesh(), Sundance::Mesh::numMaxCofacets(), Sundance::DOFMapBase::setupVerb(), and SUNDANCE_MSG3.

const RCP<BasisDOFTopologyBase>& Sundance::InhomogeneousDOFMapHN::basis

(

int

basisChunk

)

const [inline]

Definition at line 145 of file SundanceInhomogeneousDOFMapHN.hpp.

References structure_.

Referenced by allocate(), and InhomogeneousDOFMapHN().

void InhomogeneousDOFMapHN::buildMaximalDofTable

(

)

[private]

Definition at line 1007 of file SundanceInhomogeneousDOFMapHN.cpp.

References basis_, dim_, dofs_, funcDefined_, funcID(), Sundance::Mesh::getFacetLIDs(), getfuncID(), hasCellHanging_, haveMaximalDofs_, HN_To_coeffs_, HN_To_globalFacetsDim_, HN_To_globalFacetsLID_, localNodePtrs_, matrixStore_, maxCellLIDwithHN_to_TrafoMatrix_, maxDOFBuildTimer(), maximalDofs_, Sundance::DOFMapBase::mesh(), nBasisChunks(), nDofsPerCell_, nFuncs(), nNodesPerCell_, nPoints_, nrAllFuncs_, Sundance::Mesh::numCells(), Sundance::Mesh::numFacets(), Sundance::numFacets(), originalFacetOrientation_, Sundance::Map< Key, Value, Compare >::put(), Sundance::Mesh::returnParentFacets(), Sundance::DOFMapBase::setupVerb(), SUNDANCE_MSG1, SUNDANCE_MSG3, and totalNNodesPerCell_.

Referenced by InhomogeneousDOFMapHN().

int Sundance::InhomogeneousDOFMapHN::chunkForFuncID

(

int

funcID

)

const [inline]

Definition at line 129 of file SundanceInhomogeneousDOFMapHN.hpp.

References structure_.

Referenced by getDOFsForHNCell(), getTrafoMatrixForCell(), getTrafoMatrixForFacet(), and setDOFs().

void InhomogeneousDOFMapHN::computeOffsets	(	int	dim,
		int	localCount
	)			[private]

Definition at line 1539 of file SundanceInhomogeneousDOFMapHN.cpp.

References Sundance::Mesh::comm(), Sundance::DOFMapBase::comm(), dofs_, funcDefined_, funcID(), Playa::MPIComm::getRank(), Sundance::DOFMapBase::mesh(), Sundance::DOFMapBase::setLowestLocalDOF(), Sundance::DOFMapBase::setNumLocalDOFs(), Sundance::DOFMapBase::setTotalNumDOFs(), Sundance::DOFMapBase::setupVerb(), SUNDANCE_MSG2, and Playa::MPIComm::synchronize().

Referenced by initMap().

const Array<CellFilter>& Sundance::InhomogeneousDOFMapHN::funcDomains

(

)

const [inline, virtual]

Return an array of cell filters that gives, for each function ID, the cells that the function lives on.

Returns:

A reference to an array of size returnVal.size() == numTotalFunctcions where returnVal[funcID] gives a handle to a CellFilterBase object where the function funcID lives, where 0 <= funcID < numTotalFunctions.

Implements Sundance::DOFMapBase.

Definition at line 158 of file SundanceInhomogeneousDOFMapHN.hpp.

References funcDomains_.

const Array<int>& Sundance::InhomogeneousDOFMapHN::funcID

(

int

basisChunk

)

const [inline]

Definition at line 149 of file SundanceInhomogeneousDOFMapHN.hpp.

References structure_.

Referenced by buildMaximalDofTable(), computeOffsets(), getfuncID(), and shareDOFs().

RCP< const MapStructure > InhomogeneousDOFMapHN::getDOFsForCellBatch	(	int	cellDim,
		const Array< int > &	cellLIDs,
		const Set< int > &	requestedFuncSet,
		Array< Array< int > > &	dofs,
		Array< int > &	nNodes,
		int	verb
	)			const [virtual]

Return the global DOFs for a batch of cells for a given set of functions on those cells.

Parameters:

	cellDim	[in] The dimension of the cells in the batch of cells
	cellLIDs	[in] Local IDs (LIDs) for the batch of cells
	requestedFuncSet	[in] Set of function IDs for which DOFs are requested. Note that this must be equal to the allowed set of requested functions this->allowedFuncsOnCellBatch(cellDim,cellLIDs).
	dofs	[out] Global IDs for DOFs of the requested functions on the batch of cells. The size of this array on output is dofs.size()==mapStructure.numBasisChunks() . The global DOFs for cell cellLIDs[c] (where 0 <= c < cellLIDs.size()) for the cell for the basis chunk basisChunk (where 0 <= basisChunk < mapStructure.numBasisChunks()) are given by dofs[c*nDOFsPerCell[c]+k] , where k=0...nDOFsPerCell[c]-1 and nDOFsPerCell[c] = mapStructure.basis(basisChunk).nNodes( spatialDim, this->mesh()->cellType(cellDim) ) * mapStructure.numFuncs(basisChunk) . Note that the array nDOFsPerCell used above is not actually computed here or returned by this interface. It is only used abstractly to define the dofs array above.
	nNodes	[out] Array giving the number of coefficients for each type of basis family in mapStructure for each function. The size of this array on return is nNodes.size()==mapStructure.numBasisChunks() and nNodes[b]==mapStructure.basis(b).nNodes(spatialDim,cellType), for b=0...mapStructure.numBasisChunks()-1.

Preconditions:

• requestedFuncSet.setDifference( this->allowedFuncsOnCellBatch(cellDim,cellLIDs) ).size() == 0
• ???Others???

Returns:

The map structure that groups sets of different functions according with respect to those that have the same basis family. Above, we will refer to this returned object as mapStructure where mapStructure = *returnVal.

ToDo: Remove the argument requestedFuncSet since all current use cases and implemenations asume that all of the functions are requested and returned.

ToDo: Remove the nNodes return argument since this information can be gotten just from the return mapStructure object. Specifically, nNodes[basisChunk] = mapStructure.basis(basisChunk).nNodes(spatialDim,cellType) so what is the point in returning this array? Since this is needed for a whole batch of cells, it is cheap to just grab this from the returned mapStructure object as shown above.

Implements Sundance::DOFMapBase.

Definition at line 768 of file SundanceInhomogeneousDOFMapHN.cpp.

References Sundance::Set< Key, Compare >::elements(), Sundance::numFacets(), SUNDANCE_MSG2, SUNDANCE_MSG3, and SUNDANCE_MSG4.

void InhomogeneousDOFMapHN::getDOFsForHNCell	(	int	cellDim,
		int	cellLID,
		int	funcID,
		Array< int > &	dofs,
		Array< double > &	coefs
	)			const [virtual]

See subclass for docu We can be sure that this is used only for nodal data (for VTK plotting)
This is implemented only for Nodal data call !!!

Function for nodal plotting.

Implements Sundance::HNDoFMapBase.

Definition at line 1456 of file SundanceInhomogeneousDOFMapHN.cpp.

References chunkForFuncID(), Sundance::Map< Key, Value, Compare >::containsKey(), dofs_, Sundance::Map< Key, Value, Compare >::get(), HN_To_coeffs_, HN_To_globalFacetsDim_, HN_To_globalFacetsLID_, indexForFuncID(), nPoints_, Sundance::DOFMapBase::setupVerb(), and SUNDANCE_MSG1.

int Sundance::InhomogeneousDOFMapHN::getfuncID	(	int	basisChunk,
		int	funcNr
	)			const [inline]

Return the function ID for one chunk and index, same as the previous but returns one value.

Definition at line 153 of file SundanceInhomogeneousDOFMapHN.hpp.

References funcID().

Referenced by buildMaximalDofTable(), and shareDOFs().

int Sundance::InhomogeneousDOFMapHN::getInitialDOFForCell	(	int	cellDim,
		int	cellLID,
		int	funcID
	)			const [inline, private]

Definition at line 166 of file SundanceInhomogeneousDOFMapHN.hpp.

References dofs_.

Referenced by shareDOFs().

const int* Sundance::InhomogeneousDOFMapHN::getInitialDOFPtrForCell	(	int	cellDim,
		int	cellLID,
		int	funcID
	)			const [inline, private]

Definition at line 176 of file SundanceInhomogeneousDOFMapHN.hpp.

References dofs_.

int* Sundance::InhomogeneousDOFMapHN::getInitialDOFPtrForCell	(	int	cellDim,
		int	cellLID,
		int	funcID
	)			[inline, private]

Definition at line 171 of file SundanceInhomogeneousDOFMapHN.hpp.

References dofs_.

Referenced by setDOFs().

void InhomogeneousDOFMapHN::getTrafoMatrixForCell	(	int	cellLID,
		int	funcID,
		int &	trafoMatrixSize,
		bool &	doTransform,
		Array< double > &	transfMatrix
	)			const [virtual]

Returns the.

Parameters:

	cellLID	[in] the maxCell LID input
	funcID	[in]
	trafoMatrixSize	[in/out]
	doTransform	[out]
	transfMatrix	[out] row major matrix

Implements Sundance::HNDoFMapBase.

Definition at line 1397 of file SundanceInhomogeneousDOFMapHN.cpp.

References chunkForFuncID(), Sundance::Map< Key, Value, Compare >::containsKey(), Sundance::Map< Key, Value, Compare >::get(), indexForFuncID(), matrixStore_, maxCellLIDwithHN_to_TrafoMatrix_, Sundance::DOFMapBase::setupVerb(), and SUNDANCE_MSG1.

void InhomogeneousDOFMapHN::getTrafoMatrixForFacet	(	int	cellDim,
		int	cellLID,
		int	facetIndex,
		int	funcID,
		int &	trafoMatrixSize,
		bool &	doTransform,
		Array< double > &	transfMatrix
	)			const [virtual]

Function to apply transformation for facets.

Parameters:

	cellDim,the	facet dimension
	cellLID,facet	LID
	facetIndex,facet	index in the maxCofacet
	funcID	[in] the function ID
	trafoMatrixSize	[in/out]
	doTransform	[out]
	transfMatrix	[out] (we assume that the array is already pre-sized )

Implements Sundance::HNDoFMapBase.

Definition at line 1426 of file SundanceInhomogeneousDOFMapHN.cpp.

References chunkForFuncID(), Sundance::Map< Key, Value, Compare >::containsKey(), Sundance::Map< Key, Value, Compare >::get(), indexForFuncID(), matrixStore_, maxCellLIDwithHN_to_TrafoMatrix_, Sundance::Mesh::maxCofacetLID(), Sundance::DOFMapBase::mesh(), Sundance::DOFMapBase::setupVerb(), and SUNDANCE_MSG2.

bool Sundance::InhomogeneousDOFMapHN::hasBeenAssigned	(	int	cellDim,
		int	cellLID
	)			const [inline, private]

Definition at line 188 of file SundanceInhomogeneousDOFMapHN.hpp.

References hasBeenAssigned_.

Referenced by initMap().

int Sundance::InhomogeneousDOFMapHN::indexForFuncID

(

int

funcID

)

const [inline]

Definition at line 133 of file SundanceInhomogeneousDOFMapHN.hpp.

References structure_.

Referenced by getDOFsForHNCell(), getTrafoMatrixForCell(), and getTrafoMatrixForFacet().

void InhomogeneousDOFMapHN::initMap

(

)

[private]

Definition at line 362 of file SundanceInhomogeneousDOFMapHN.cpp.

References cellHasAnyDOFs_, Sundance::DOFMapBase::comm(), Sundance::Mesh::comm(), computeOffsets(), Sundance::Set< Key, Compare >::contains(), dim_, elemFuncSets_, funcDefined_, Sundance::Mesh::getFacetArray(), Playa::MPIComm::getNProc(), hasBeenAssigned(), Sundance::DOFMapBase::isRemote(), Sundance::Mesh::mapLIDToGID(), markAsAssigned(), maxCellFuncSetsIndex_, Sundance::DOFMapBase::mesh(), nrAllFuncs_, Sundance::Mesh::numCells(), numFacets_, Sundance::DOFMapBase::numLocalDOFs(), originalFacetOrientation_, setDOFs(), Sundance::DOFMapBase::setLowestLocalDOF(), Sundance::DOFMapBase::setNumLocalDOFs(), Sundance::DOFMapBase::setTotalNumDOFs(), Sundance::DOFMapBase::setupVerb(), shareDOFs(), SUNDANCE_MSG1, and SUNDANCE_MSG4.

Referenced by InhomogeneousDOFMapHN().

RCP<const MapStructure> Sundance::InhomogeneousDOFMapHN::mapStruct

(

)

const [inline]

Definition at line 125 of file SundanceInhomogeneousDOFMapHN.hpp.

References structure_.

void Sundance::InhomogeneousDOFMapHN::markAsAssigned	(	int	cellDim,
		int	cellLID
	)			[inline, private]

Definition at line 191 of file SundanceInhomogeneousDOFMapHN.hpp.

References hasBeenAssigned_.

Referenced by initMap().

int Sundance::InhomogeneousDOFMapHN::nBasisChunks

(

)

const [inline]

Definition at line 141 of file SundanceInhomogeneousDOFMapHN.hpp.

References nFuncs_.

Referenced by allocate(), buildMaximalDofTable(), and shareDOFs().

int Sundance::InhomogeneousDOFMapHN::nFuncs

(

int

basisChunk

)

const [inline]

Definition at line 137 of file SundanceInhomogeneousDOFMapHN.hpp.

References nFuncs_.

Referenced by buildMaximalDofTable(), and shareDOFs().

void InhomogeneousDOFMapHN::print

(

std::ostream &

os

)

const [virtual]

Print the DOF map.

ToDo: Replace this with override of Teuchos::Describable::describe().

Implements Sundance::DOFMapBase.

Definition at line 1609 of file SundanceInhomogeneousDOFMapHN.cpp.

void InhomogeneousDOFMapHN::setDOFs	(	int	basisChunk,
		int	cellDim,
		int	cellLID,
		int &	nextDOF,
		bool	isRemote = false
	)			[private]

Definition at line 538 of file SundanceInhomogeneousDOFMapHN.cpp.

References Sundance::DOFMapBase::addGhostIndex(), chunkForFuncID(), dofs_, funcDefined_, getInitialDOFPtrForCell(), isElementHanging_, Sundance::DOFMapBase::mesh(), nDofsPerCell_, Sundance::DOFMapBase::setupVerb(), and SUNDANCE_MSG4.

Referenced by initMap(), and shareDOFs().

void InhomogeneousDOFMapHN::shareDOFs	(	int	cellDim,
		const Array< Array< int > > &	outgoingCellRequests
	)			[private]

Definition at line 606 of file SundanceInhomogeneousDOFMapHN.cpp.

References Sundance::DOFMapBase::comm(), Sundance::Mesh::comm(), dim_, dofs_, funcDefined_, funcID(), getfuncID(), getInitialDOFForCell(), Playa::MPIComm::getNProc(), Playa::MPIComm::getRank(), Sundance::Mesh::mapGIDToLID(), Sundance::DOFMapBase::mesh(), nBasisChunks(), nDofsPerCell_, nFuncs(), originalFacetOrientation_, setDOFs(), Sundance::DOFMapBase::setupVerb(), SUNDANCE_MSG2, SUNDANCE_MSG3, and SUNDANCE_MSG4.

Referenced by initMap().

static int Sundance::InhomogeneousDOFMapHN::uninitializedVal

(

)

[inline, static, private]

Definition at line 209 of file SundanceInhomogeneousDOFMapHN.hpp.

---

Member Data Documentation

Set<int> Sundance::InhomogeneousDOFMapHN::allFuncs_ [private]

set which contains all the functions

Definition at line 247 of file SundanceInhomogeneousDOFMapHN.hpp.

Referenced by InhomogeneousDOFMapHN().

Array<RCP<BasisFamilyBase> > Sundance::InhomogeneousDOFMapHN::basis_ [mutable, private]

The basis for the transformation.

Definition at line 295 of file SundanceInhomogeneousDOFMapHN.hpp.

Referenced by buildMaximalDofTable(), and InhomogeneousDOFMapHN().

Array<int> Sundance::InhomogeneousDOFMapHN::cellHasAnyDOFs_ [private]

Indicates whether the cells of each dimension have any DOFs in this map, for any chunk.

Definition at line 316 of file SundanceInhomogeneousDOFMapHN.hpp.

Referenced by allocate(), and initMap().

int Sundance::InhomogeneousDOFMapHN::dim_ [private]

spatial dimension

Definition at line 212 of file SundanceInhomogeneousDOFMapHN.hpp.

Referenced by allocate(), allowedFuncsOnCellBatch(), buildMaximalDofTable(), InhomogeneousDOFMapHN(), initMap(), and shareDOFs().

Array< Array<Array<Array<int> > > > Sundance::InhomogeneousDOFMapHN::dofs_ [private]

Tables of DOFs, indexed by dimension and chunk number.

dof(cellDim, cellLID, funcID , node) = dofs_[cellDim][cellLID][funcID][node]

Definition at line 219 of file SundanceInhomogeneousDOFMapHN.hpp.

Referenced by allocate(), buildMaximalDofTable(), computeOffsets(), getDOFsForHNCell(), getInitialDOFForCell(), getInitialDOFPtrForCell(), setDOFs(), and shareDOFs().

Array<Set<int> > Sundance::InhomogeneousDOFMapHN::elemFuncSets_ [private]

store all the combination of functions

Definition at line 254 of file SundanceInhomogeneousDOFMapHN.hpp.

Referenced by allowedFuncsOnCellBatch(), InhomogeneousDOFMapHN(), and initMap().

Array<Set<int> > Sundance::InhomogeneousDOFMapHN::elemFuncSetsDomain_ [private]

here we store all combinations of functions which can appear for maxcells in the input parameter used only in the setup face

Definition at line 251 of file SundanceInhomogeneousDOFMapHN.hpp.

Referenced by InhomogeneousDOFMapHN().

Array< Array<Array<short signed int> > > Sundance::InhomogeneousDOFMapHN::funcDefined_ [private]

if one function is defined on this element then is > 0 , else the function is not defined on this element = funcDefined_[cellDim][funcID][cellLID]

Definition at line 224 of file SundanceInhomogeneousDOFMapHN.hpp.

Referenced by allocate(), buildMaximalDofTable(), computeOffsets(), initMap(), setDOFs(), and shareDOFs().

Array<CellFilter> Sundance::InhomogeneousDOFMapHN::funcDomains_ [private]

the domains where each function(input) is defined on the maxCells

Definition at line 244 of file SundanceInhomogeneousDOFMapHN.hpp.

Referenced by funcDomains(), and InhomogeneousDOFMapHN().

Array<int> Sundance::InhomogeneousDOFMapHN::funcSetCellCount_ [private]

how many cells has one combination of "elemFuncSets_"

Definition at line 257 of file SundanceInhomogeneousDOFMapHN.hpp.

Referenced by InhomogeneousDOFMapHN().

Array<Array<int> > Sundance::InhomogeneousDOFMapHN::hasBeenAssigned_ [private]

Definition at line 328 of file SundanceInhomogeneousDOFMapHN.hpp.

Referenced by allocate(), hasBeenAssigned(), and markAsAssigned().

Array<bool> Sundance::InhomogeneousDOFMapHN::hasCellHanging_ [private]

Is true if the cell has hanging node.

Definition at line 272 of file SundanceInhomogeneousDOFMapHN.hpp.

Referenced by allocate(), and buildMaximalDofTable().

bool Sundance::InhomogeneousDOFMapHN::haveMaximalDofs_ [mutable, private]

whether maximal DOFs have been tabulated

Definition at line 233 of file SundanceInhomogeneousDOFMapHN.hpp.

Referenced by buildMaximalDofTable().

Sundance::Map< int , Array<double> > Sundance::InhomogeneousDOFMapHN::HN_To_coeffs_ [private]

store the coefs [nPoints*b + facetID]

Definition at line 284 of file SundanceInhomogeneousDOFMapHN.hpp.

Referenced by buildMaximalDofTable(), and getDOFsForHNCell().

Sundance::Map< int , Array<int> > Sundance::InhomogeneousDOFMapHN::HN_To_globalFacetsDim_ [private]

store the facetDim of the points [nPoints*b + facetID]

Definition at line 281 of file SundanceInhomogeneousDOFMapHN.hpp.

Referenced by buildMaximalDofTable(), and getDOFsForHNCell().

Sundance::Map< int , Array<int> > Sundance::InhomogeneousDOFMapHN::HN_To_globalFacetsLID_ [private]

store the facetLIDs of the points [nPoints*b + facetID]

Definition at line 278 of file SundanceInhomogeneousDOFMapHN.hpp.

Referenced by buildMaximalDofTable(), and getDOFsForHNCell().

Array< Array<bool> > Sundance::InhomogeneousDOFMapHN::isElementHanging_ [private]

Flag per element showing if the element is a hanging element.

Definition at line 275 of file SundanceInhomogeneousDOFMapHN.hpp.

Referenced by allocate(), and setDOFs().

Array<Array<Array<Array<Array<int> > > > > Sundance::InhomogeneousDOFMapHN::localNodePtrs_ [private]

localNodePtrs_[basisChunk][cellDim][facetDim][facetNumber][nodeNumber]

Definition at line 238 of file SundanceInhomogeneousDOFMapHN.hpp.

Referenced by allocate(), and buildMaximalDofTable().

MatrixStore Sundance::InhomogeneousDOFMapHN::matrixStore_ [private]

The object to store all the transformation matrixes.

Definition at line 292 of file SundanceInhomogeneousDOFMapHN.hpp.

Referenced by buildMaximalDofTable(), getTrafoMatrixForCell(), getTrafoMatrixForFacet(), and InhomogeneousDOFMapHN().

Array<int> Sundance::InhomogeneousDOFMapHN::maxCellFuncSetsIndex_ [private]

for each maxcell store the index in the "elemFuncSets_" , to store the combination of functions

Definition at line 261 of file SundanceInhomogeneousDOFMapHN.hpp.

Referenced by allowedFuncsOnCellBatch(), InhomogeneousDOFMapHN(), and initMap().

Sundance::Map< int , Array < int > > Sundance::InhomogeneousDOFMapHN::maxCellLIDwithHN_to_TrafoMatrix_ [private]

Maps one maxCell LID to one transformation matrix, only maxDim elements and basisChunck ID with hanging nodes should have transformation matrix [maxCellLID].get -> [basisChunckID][] is the index of trafo matrix.

Definition at line 289 of file SundanceInhomogeneousDOFMapHN.hpp.

Referenced by buildMaximalDofTable(), getTrafoMatrixForCell(), and getTrafoMatrixForFacet().

Array< Array<Array<int> > > Sundance::InhomogeneousDOFMapHN::maximalDofs_ [mutable, private]

DOFs for maximal cells, indexed by the cell LID this contains all the DoF of one maxDimCell = maximalDofs_[LID][funcID][DoFIndex];.

Definition at line 230 of file SundanceInhomogeneousDOFMapHN.hpp.

Referenced by allocate(), and buildMaximalDofTable().

Array<CellFilter> Sundance::InhomogeneousDOFMapHN::maxSubdomains_ [private]

the domains where each cell filter (as it is in the input) is defined on the maxCells

Definition at line 241 of file SundanceInhomogeneousDOFMapHN.hpp.

Referenced by InhomogeneousDOFMapHN().

Array<Array<int> > Sundance::InhomogeneousDOFMapHN::nDofsPerCell_ [private]

The number of DOFs per cell, for each basis function type, not including the DOFs of the facets of the cell.

Indexed as nDofsPerCell_[basis][dimension]

Definition at line 307 of file SundanceInhomogeneousDOFMapHN.hpp.

Referenced by allocate(), buildMaximalDofTable(), setDOFs(), and shareDOFs().

Array<int> Sundance::InhomogeneousDOFMapHN::nFuncs_ [private]

Definition at line 334 of file SundanceInhomogeneousDOFMapHN.hpp.

Referenced by InhomogeneousDOFMapHN(), nBasisChunks(), and nFuncs().

Array<Array<int> > Sundance::InhomogeneousDOFMapHN::nNodesPerCell_ [private]

The number of nodes per cell, for each basis function type, not including the nodes of the facets of the cell.

Indexed as nNodesPerCell_[basis][dimension]

Definition at line 302 of file SundanceInhomogeneousDOFMapHN.hpp.

Referenced by allocate(), and buildMaximalDofTable().

int Sundance::InhomogeneousDOFMapHN::nPoints_ [private]

Nr of points, needed only by plotting.

Definition at line 266 of file SundanceInhomogeneousDOFMapHN.hpp.

Referenced by buildMaximalDofTable(), getDOFsForHNCell(), and InhomogeneousDOFMapHN().

int Sundance::InhomogeneousDOFMapHN::nrAllFuncs_ [private]

total number of functions

Definition at line 269 of file SundanceInhomogeneousDOFMapHN.hpp.

Referenced by allocate(), buildMaximalDofTable(), InhomogeneousDOFMapHN(), and initMap().

Array<Array<int> > Sundance::InhomogeneousDOFMapHN::numFacets_ [private]

number of facets of dimension facetDim for cells of dimension cellDim.

Indexed as numFacets_[cellDim][facetDim]

Definition at line 321 of file SundanceInhomogeneousDOFMapHN.hpp.

Referenced by allocate(), and initMap().

Array<Array<int> > Sundance::InhomogeneousDOFMapHN::originalFacetOrientation_ [private]

Orientation of each edge or face as seen by the maximal cell from which its DOFs were originally assigned.

Definition at line 325 of file SundanceInhomogeneousDOFMapHN.hpp.

Referenced by allocate(), buildMaximalDofTable(), initMap(), and shareDOFs().

RCP<const MapStructure> Sundance::InhomogeneousDOFMapHN::structure_ [private]

Definition at line 331 of file SundanceInhomogeneousDOFMapHN.hpp.

Referenced by basis(), chunkForFuncID(), funcID(), indexForFuncID(), InhomogeneousDOFMapHN(), and mapStruct().

Array<Array<int> > Sundance::InhomogeneousDOFMapHN::totalNNodesPerCell_ [private]

The number of nodes per cell, for each basis function type, including the nodes of the facets of the cell.

Indexed as nNodesPerCell_[basis][dimension]

Definition at line 312 of file SundanceInhomogeneousDOFMapHN.hpp.

Referenced by allocate(), and buildMaximalDofTable().
