Sundance::ExtrusionMeshTransformation Class Reference

ExtrusionMeshTransformation extrudes a 2D mesh to 3D. More...

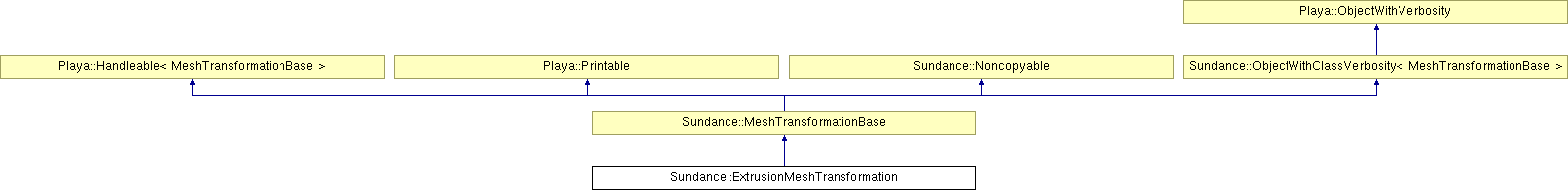

Inheritance diagram for Sundance::ExtrusionMeshTransformation:

Sundance::MeshTransformationBase Playa::Handleable< MeshTransformationBase > Playa::Printable Sundance::Noncopyable Sundance::ObjectWithClassVerbosity< MeshTransformationBase > Playa::ObjectWithVerbosity

List of all members.

Public Member Functions

 ExtrusionMeshTransformation (double z0, double z1, int nzLevels, const MeshType &meshType)
 Construct a filter to extrude a 2D mesh from the plane $z=z_0$ to the plane $z=z_1$ in $n_z$ steps.
virtual ~ExtrusionMeshTransformation ()
 virtual dtor
virtual Mesh apply (const Mesh &inputMesh) const
 Apply the filter to an input mesh, returning an output mesh.
virtual std::string description () const
 Print a short descriptive std::string.
virtual RCP
< MeshTransformationBase > 		getRcp ()
 Return a ref count pointer to self.

Private Attributes

double z0_
double z1_
int nzLevels_

Detailed Description

ExtrusionMeshTransformation extrudes a 2D mesh to 3D.

Definition at line 43 of file SundanceExtrusionMeshTransformation.hpp.

Constructor & Destructor Documentation

Sundance::ExtrusionMeshTransformation::ExtrusionMeshTransformation ( double  z0,
double  z1,
int  nzLevels,
const MeshType &  meshType
) [inline]

Construct a filter to extrude a 2D mesh from the plane $z=z_0$ to the plane $z=z_1$ in $n_z$ steps.

Definition at line 49 of file SundanceExtrusionMeshTransformation.hpp.

virtual Sundance::ExtrusionMeshTransformation::~ExtrusionMeshTransformation (  )  [inline, virtual]

virtual dtor

Definition at line 55 of file SundanceExtrusionMeshTransformation.hpp.

Member Function Documentation

Mesh ExtrusionMeshTransformation::apply ( const Mesh &  inputMesh  )  const [virtual]

Apply the filter to an input mesh, returning an output mesh.

Implements Sundance::MeshTransformationBase.

Definition at line 13 of file SundanceExtrusionMeshTransformation.cpp.

References Sundance::Mesh::cellType(), Sundance::Mesh::comm(), Sundance::MeshTransformationBase::createMesh(), Sundance::Mesh::getFacetArray(), Sundance::Mesh::nodePosition(), Sundance::Mesh::numCells(), nzLevels_, sort(), Sundance::Mesh::spatialDim(), SUNDANCE_OUT, Sundance::TriangleCell, Playa::ObjectWithVerbosity::verb(), z0_, and z1_.

virtual std::string Sundance::ExtrusionMeshTransformation::description (  )  const [inline, virtual]

Print a short descriptive std::string.

Reimplemented from Sundance::MeshTransformationBase.

Definition at line 61 of file SundanceExtrusionMeshTransformation.hpp.

References nzLevels_, Sundance::toString(), z0_, and z1_.

virtual RCP<MeshTransformationBase> Sundance::ExtrusionMeshTransformation::getRcp (  )  [inline, virtual]

Return a ref count pointer to self.

Implements Playa::Handleable< MeshTransformationBase >.

Definition at line 68 of file SundanceExtrusionMeshTransformation.hpp.

Member Data Documentation

int Sundance::ExtrusionMeshTransformation::nzLevels_ [private]

Definition at line 79 of file SundanceExtrusionMeshTransformation.hpp.

Referenced by apply(), and description().

double Sundance::ExtrusionMeshTransformation::z0_ [private]

Definition at line 73 of file SundanceExtrusionMeshTransformation.hpp.

Referenced by apply(), and description().

double Sundance::ExtrusionMeshTransformation::z1_ [private]

Definition at line 76 of file SundanceExtrusionMeshTransformation.hpp.

Referenced by apply(), and description().
