Sundance::CurveEvalMediator Class Reference

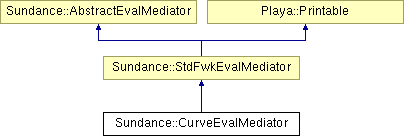

Inheritance diagram for Sundance::CurveEvalMediator:

List of all members.

Public Member Functions
	CurveEvalMediator (const Mesh &mesh, const ParametrizedCurve &paramcurve, int cellDim, const QuadratureFamily &quad)
virtual	~CurveEvalMediator ()
virtual void	evalCoordExpr (const CoordExpr *expr, RCP< EvalVector > &vec) const
	Evaluate the given coordinate expression, putting its numerical values in the given EvalVector.
virtual void	evalDiscreteFuncElement (const DiscreteFuncElement *expr, const Array< MultiIndex > &mi, Array< RCP< EvalVector > > &vec) const
	Evaluate the given discrete function, putting its numerical values in the given EvalVector.
virtual void	evalCellDiameterExpr (const CellDiameterExpr *expr, RCP< EvalVector > &vec) const
	Evaluate the given cell diameter expression, putting its numerical values in the given EvalVector.
virtual void	evalCurveNormExpr (const CurveNormExpr *expr, RCP< EvalVector > &vec) const
	Evaluates one component of the normal vector to a given parameterized curve i.e.
virtual void	evalCellVectorExpr (const CellVectorExpr *expr, RCP< EvalVector > &vec) const
	Evaluate the given cell vector expression, putting its numerical values in the given EvalVector.
virtual void	setCellType (const CellType &cellType, const CellType &maxCellType, bool isInternalBdry)
	Update the cell type.
virtual void	print (std::ostream &os) const
	abstract print function
RCP< Array< Array< Array < double > > > >	getFacetRefBasisVals (const BasisFamily &basis, int diffOrder) const
int	numQuadPts (const CellType &cellType) const
int	numEvaluationCases () const
	Return the number of different cases for which reference basis functions must be evaluated.
Static Public Member Functions
static double &	totalFlops ()
static void	addFlops (const double &flops)
static Time &	coordEvaluationTimer ()
Private Attributes
int	numEvaluationCases_
QuadratureFamily	quad_
int	numQuadPtsForMaxCell_
CellType	maxCellType_
CellType	curveCellType_
ParametrizedCurve	paramcurve_

---

Detailed Description

Definition at line 49 of file SundanceCurveEvalMediator.hpp.

---

Constructor & Destructor Documentation

Sundance::CurveEvalMediator::CurveEvalMediator	(	const Mesh &	mesh,
		const ParametrizedCurve &	paramcurve,
		int	cellDim,
		const QuadratureFamily &	quad
	)

virtual Sundance::CurveEvalMediator::~CurveEvalMediator

(

)

[inline, virtual]

Definition at line 62 of file SundanceCurveEvalMediator.hpp.

---

Member Function Documentation

static void Sundance::CurveEvalMediator::addFlops

(

const double &

flops

)

[inline, static]

Definition at line 110 of file SundanceCurveEvalMediator.hpp.

References totalFlops().

Time & CurveEvalMediator::coordEvaluationTimer

(

)

[static]

Definition at line 74 of file SundanceCurveEvalMediator.cpp.

void CurveEvalMediator::evalCellDiameterExpr	(	const CellDiameterExpr *	expr,
		RCP< EvalVector > &	vec
	)			const [virtual]

Evaluate the given cell diameter expression, putting its numerical values in the given EvalVector.

Implements Sundance::AbstractEvalMediator.

Definition at line 125 of file SundanceCurveEvalMediator.cpp.

References Sundance::StdFwkEvalMediator::cellDim(), Sundance::StdFwkEvalMediator::cellLID(), Sundance::StdFwkEvalMediator::cellType(), Sundance::Mesh::getCellDiameters(), Sundance::StdFwkEvalMediator::mesh(), numQuadPts(), SUNDANCE_MSG2, SUNDANCE_MSG3, Sundance::ExprBase::toString(), and Sundance::AbstractEvalMediator::verb().

void CurveEvalMediator::evalCellVectorExpr	(	const CellVectorExpr *	expr,
		RCP< EvalVector > &	vec
	)			const [virtual]

Evaluate the given cell vector expression, putting its numerical values in the given EvalVector.

Implements Sundance::AbstractEvalMediator.

Definition at line 154 of file SundanceCurveEvalMediator.cpp.

References Sundance::StdFwkEvalMediator::cellDim(), Sundance::StdFwkEvalMediator::cellLID(), Sundance::StdFwkEvalMediator::cellType(), Sundance::CellVectorExpr::componentIndex(), Sundance::CellVectorExpr::isNormal(), Sundance::StdFwkEvalMediator::mesh(), numQuadPts(), Sundance::Mesh::outwardNormals(), SUNDANCE_MSG2, SUNDANCE_MSG3, Sundance::Mesh::tangentsToEdges(), Sundance::ExprBase::toString(), and Sundance::AbstractEvalMediator::verb().

void CurveEvalMediator::evalCoordExpr	(	const CoordExpr *	expr,
		RCP< EvalVector > &	vec
	)			const [virtual]

Evaluate the given coordinate expression, putting its numerical values in the given EvalVector.

Implements Sundance::AbstractEvalMediator.

Definition at line 194 of file SundanceCurveEvalMediator.cpp.

References Sundance::StdFwkEvalMediator::cellLID(), Sundance::StdFwkEvalMediator::cellType(), Sundance::CoordExpr::dir(), Sundance::Mesh::getCurvePoints(), Sundance::CurveIntegralCalc::getCurveQuadPoints(), Sundance::Mesh::hasCurvePoints(), maxCellType_, Sundance::StdFwkEvalMediator::mesh(), numQuadPts(), paramcurve_, Sundance::Mesh::pushForward(), quad_, Sundance::Mesh::setCurvePoints(), Sundance::Mesh::spatialDim(), SUNDANCE_MSG2, SUNDANCE_MSG3, Sundance::ExprBase::toString(), and Sundance::AbstractEvalMediator::verb().

void CurveEvalMediator::evalCurveNormExpr	(	const CurveNormExpr *	expr,
		RCP< EvalVector > &	vec
	)			const [virtual]

Evaluates one component of the normal vector to a given parameterized curve i.e.

x,y or z component of that vector in 3D
, this method is only in the CurveEvalMediator class implemented

Reimplemented from Sundance::AbstractEvalMediator.

Definition at line 252 of file SundanceCurveEvalMediator.cpp.

References Sundance::StdFwkEvalMediator::cellLID(), Sundance::StdFwkEvalMediator::cellType(), Sundance::CurveNormExpr::dir(), Sundance::Mesh::getCurvePoints(), Sundance::CurveIntegralCalc::getCurveQuadPoints(), Sundance::Mesh::hasCurvePoints(), maxCellType_, Sundance::StdFwkEvalMediator::mesh(), numQuadPts(), paramcurve_, quad_, Sundance::Mesh::setCurvePoints(), SUNDANCE_MSG2, SUNDANCE_MSG3, Sundance::ExprBase::toString(), and Sundance::AbstractEvalMediator::verb().

void CurveEvalMediator::evalDiscreteFuncElement	(	const DiscreteFuncElement *	expr,
		const Array< MultiIndex > &	mi,
		Array< RCP< EvalVector > > &	vec
	)			const [virtual]

Evaluate the given discrete function, putting its numerical values in the given EvalVector.

Implements Sundance::AbstractEvalMediator.

Definition at line 306 of file SundanceCurveEvalMediator.cpp.

References Sundance::CellJacobianBatch::cellDim(), Sundance::BasisFamily::dim(), Sundance::CurveIntegralCalc::getCurveQuadPoints(), Sundance::DiscreteFunctionData::getData(), Sundance::CellJacobianBatch::getInvJ(), Sundance::DiscreteFuncElement::myIndex(), Sundance::BasisFamily::nReferenceDOFsWithFacets(), Sundance::CellJacobianBatch::numCells(), Sundance::MultiIndex::order(), Sundance::BasisFamily::refEval(), Sundance::CellJacobianBatch::spatialDim(), SUNDANCE_MSG2, Sundance::ExprBase::toString(), and vecPtr().

RCP<Array<Array<Array<double> > > > Sundance::CurveEvalMediator::getFacetRefBasisVals	(	const BasisFamily &	basis,
		int	diffOrder
	)			const

int Sundance::CurveEvalMediator::numEvaluationCases

(

)

const [inline]

Return the number of different cases for which reference basis functions must be evaluated.

If we're on maximal cells, this will be one. If we're on lower-dimensional cells, this will be equal to the number of cellDim-dimensional facets of the maximal cells.

Definition at line 119 of file SundanceCurveEvalMediator.hpp.

References numEvaluationCases_.

int CurveEvalMediator::numQuadPts

(

const CellType &

cellType

)

const

Definition at line 116 of file SundanceCurveEvalMediator.cpp.

References maxCellType_, and numQuadPtsForMaxCell_.

Referenced by evalCellDiameterExpr(), evalCellVectorExpr(), evalCoordExpr(), and evalCurveNormExpr().

void CurveEvalMediator::print

(

std::ostream &

os

)

const [virtual]

abstract print function

Implements Playa::Printable.

Definition at line 507 of file SundanceCurveEvalMediator.cpp.

void CurveEvalMediator::setCellType	(	const CellType &	cellType,
		const CellType &	maxCellType,
		bool	isInternalBdry
	)			[virtual]

Update the cell type.

Reimplemented from Sundance::StdFwkEvalMediator.

Definition at line 79 of file SundanceCurveEvalMediator.cpp.

References Sundance::StdFwkEvalMediator::cellDim(), Sundance::StdFwkEvalMediator::forbidCofacetIntegrations(), Sundance::StdFwkEvalMediator::integrationCellSpec(), Sundance::StdFwkEvalMediator::isInternalBdry(), maxCellType_, numEvaluationCases_, SUNDANCE_MSG2, and Sundance::AbstractEvalMediator::verb().

static double& Sundance::CurveEvalMediator::totalFlops

(

)

[inline, static]

Definition at line 106 of file SundanceCurveEvalMediator.hpp.

Referenced by addFlops().

---

Member Data Documentation

CellType Sundance::CurveEvalMediator::curveCellType_ [private]

Definition at line 140 of file SundanceCurveEvalMediator.hpp.

CellType Sundance::CurveEvalMediator::maxCellType_ [private]

Reimplemented from Sundance::StdFwkEvalMediator.

Definition at line 137 of file SundanceCurveEvalMediator.hpp.

Referenced by evalCoordExpr(), evalCurveNormExpr(), numQuadPts(), and setCellType().

int Sundance::CurveEvalMediator::numEvaluationCases_ [private]

Definition at line 128 of file SundanceCurveEvalMediator.hpp.

Referenced by numEvaluationCases(), and setCellType().

int Sundance::CurveEvalMediator::numQuadPtsForMaxCell_ [private]

Definition at line 134 of file SundanceCurveEvalMediator.hpp.

Referenced by numQuadPts().

ParametrizedCurve Sundance::CurveEvalMediator::paramcurve_ [private]

Definition at line 143 of file SundanceCurveEvalMediator.hpp.

Referenced by evalCoordExpr(), and evalCurveNormExpr().

QuadratureFamily Sundance::CurveEvalMediator::quad_ [private]

Definition at line 131 of file SundanceCurveEvalMediator.hpp.

Referenced by evalCoordExpr(), and evalCurveNormExpr().
