Sundance::PartitionedRectangleMesher Class Reference

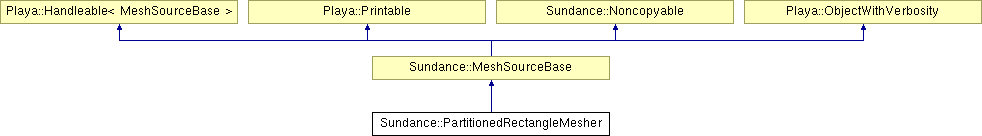

Inheritance diagram for Sundance::PartitionedRectangleMesher:

Sundance::MeshSourceBase Playa::Handleable< MeshSourceBase > Playa::Printable Sundance::Noncopyable Playa::ObjectWithVerbosity

List of all members.

Public Member Functions

 PartitionedRectangleMesher (double ax, double bx, int nx, int npx, double ay, double by, int ny, int npy, const MeshType &meshType, int verbosity=0, const MPIComm &comm=MPIComm::world())
 PartitionedRectangleMesher (double ax, double bx, int nx, double ay, double by, int ny, const MeshType &meshType, int verbosity=0, const MPIComm &comm=MPIComm::world())
 PartitionedRectangleMesher (const ParameterList &params)
virtual ~PartitionedRectangleMesher ()
virtual std::string description () const
virtual RCP< MeshSourceBase > getRcp ()

Static Public Member Functions

static void balanceXY (int n, int *npx, int *npy)

Protected Member Functions

virtual Mesh fillMesh () const

Private Attributes

double ax_
double bx_
int nx_
int npx_
double ay_
double by_
int ny_
int npy_

Detailed Description

PartitionedRectangleMesher meshes the rectangle $ \left[a_x, b_x\right] \otimes \left[a_y, b_y\right] $ with $ n_x \otimes n_y $ elements per processor. The rectangle is partitioned among processors, with $np_x$ equal sized subdomains in the $x$ direction and $np_y$ in the $y$ direction.

Definition at line 52 of file SundancePartitionedRectangleMesher.hpp.

Constructor & Destructor Documentation

Sundance::PartitionedRectangleMesher::PartitionedRectangleMesher ( double  ax,
double  bx,
int  nx,
int  npx,
double  ay,
double  by,
int  ny,
int  npy,
const MeshType &  meshType,
int  verbosity = 0,
const MPIComm &  comm = MPIComm::world()
) [inline]

Set up meshing of the rectangle $ \left[a_x, b_x\right] \otimes \left[a_y, b_y\right] $ with $ n_x \otimes n_y $ elements per processor. The rectangle is partitioned among processors, with $np_x$ equal sized subdomains in the $x$ direction and $np_y$ in the $y$ direction.

Definition at line 64 of file SundancePartitionedRectangleMesher.hpp.

Sundance::PartitionedRectangleMesher::PartitionedRectangleMesher ( double  ax,
double  bx,
int  nx,
double  ay,
double  by,
int  ny,
const MeshType &  meshType,
int  verbosity = 0,
const MPIComm &  comm = MPIComm::world()
) [inline]

Set up meshing of the rectangle $ \left[a_x, b_x\right] \otimes \left[a_y, b_y\right] $ with $ n_x \otimes n_y $ elements per processor. The balance() function is used to choose npx and npy.

Definition at line 80 of file SundancePartitionedRectangleMesher.hpp.

References balanceXY(), Sundance::MeshSourceBase::comm(), Playa::MPIComm::getNProc(), npx_, and npy_.

PartitionedRectangleMesher::PartitionedRectangleMesher ( const ParameterList &  params  )

Create a rectangle mesher from a ParameterList

Definition at line 10 of file SundancePartitionedRectangleMesher.cpp.

References npx_, and npy_.

virtual Sundance::PartitionedRectangleMesher::~PartitionedRectangleMesher (  )  [inline, virtual]

Definition at line 98 of file SundancePartitionedRectangleMesher.hpp.

Member Function Documentation

void PartitionedRectangleMesher::balanceXY ( int  n,
int *  npx,
int *  npy
) [static]

Find a nearly equal balance between X and Y partitions

Definition at line 32 of file SundancePartitionedRectangleMesher.cpp.

Referenced by Sundance::RectangleDomain::init(), and PartitionedRectangleMesher().

virtual std::string Sundance::PartitionedRectangleMesher::description (  )  const [inline, virtual]

Print a short descriptive std::string

Reimplemented from Sundance::MeshSourceBase.

Definition at line 101 of file SundancePartitionedRectangleMesher.hpp.

References ax_, ay_, bx_, by_, nx_, ny_, and Sundance::toString().

Mesh PartitionedRectangleMesher::fillMesh (  )  const [protected, virtual]

Implements Sundance::MeshSourceBase.

Definition at line 50 of file SundancePartitionedRectangleMesher.cpp.

References Sundance::Mesh::addElement(), Sundance::Mesh::addVertex(), ax_, ay_, bx_, by_, Sundance::MeshSourceBase::createMesh(), Sundance::Mesh::freezeTopology(), Sundance::MeshSourceBase::myRank(), Sundance::MeshSourceBase::nProc(), npx_, npy_, nx_, ny_, SUNDANCE_OUT, and Playa::ObjectWithVerbosity::verb().

virtual RCP<MeshSourceBase> Sundance::PartitionedRectangleMesher::getRcp (  )  [inline, virtual]

Return a ref count pointer to self

Implements Playa::Handleable< MeshSourceBase >.

Definition at line 116 of file SundancePartitionedRectangleMesher.hpp.

Member Data Documentation

double Sundance::PartitionedRectangleMesher::ax_ [private]

Definition at line 128 of file SundancePartitionedRectangleMesher.hpp.

Referenced by description(), and fillMesh().

double Sundance::PartitionedRectangleMesher::ay_ [private]

Definition at line 137 of file SundancePartitionedRectangleMesher.hpp.

Referenced by description(), and fillMesh().

double Sundance::PartitionedRectangleMesher::bx_ [private]

Definition at line 130 of file SundancePartitionedRectangleMesher.hpp.

Referenced by description(), and fillMesh().

double Sundance::PartitionedRectangleMesher::by_ [private]

Definition at line 139 of file SundancePartitionedRectangleMesher.hpp.

Referenced by description(), and fillMesh().

int Sundance::PartitionedRectangleMesher::npx_ [private]

Definition at line 134 of file SundancePartitionedRectangleMesher.hpp.

Referenced by fillMesh(), and PartitionedRectangleMesher().

int Sundance::PartitionedRectangleMesher::npy_ [private]

Definition at line 143 of file SundancePartitionedRectangleMesher.hpp.

Referenced by fillMesh(), and PartitionedRectangleMesher().

int Sundance::PartitionedRectangleMesher::nx_ [private]

Definition at line 132 of file SundancePartitionedRectangleMesher.hpp.

Referenced by description(), and fillMesh().

int Sundance::PartitionedRectangleMesher::ny_ [private]

Definition at line 141 of file SundancePartitionedRectangleMesher.hpp.

Referenced by description(), and fillMesh().
